COAXIAL CABLE, HI TEMP MIL-C-27, RG178B, 30 AWG, 50 OHM, 500 FT, 152.4 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

83265 009500

Active

Belden Inc.

COAXIAL CABLE, HI TEMP MIL-C-27, RG178B, 30 AWG, 50 OHM, 500 FT, 152.4 M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83265 009500

Cable Type	Coaxial
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
Dielectric Diameter [diameter]	0.033 in
Dielectric Diameter [diameter]	0.84 mm
Dielectric Material	Tetrafluoroethylene (TFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	1.8 mm
Jacket (Insulation) Diameter [diameter]	0.071 "
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	95 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
VoP, Velocity of Propagation	69.5
Wire Gauge	30 AWG

83265 Series

Part	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Cable Type	Impedance	Shield Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Type	Jacket (Insulation) Material	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 83265 009500	95 %	7	38 AWG	Tetrafluoroethylene (TFE)	200 °C	-70 °C	152.4 m	6000 in	Coaxial	50 Ohms	Copper Silver Coated	Copper Covered Silver Coated Steel	1.8 mm	0.071 "	30 AWG	Braid	Fluorinated Ethylene-Propylene (FEP)	69.5	0.033 in	0.84 mm
Belden Inc. 83265 009100	95 %	7	38 AWG	Tetrafluoroethylene (TFE)	200 °C	-70 °C			Coaxial	50 Ohms	Copper Silver Coated	Copper Covered Silver Coated Steel	1.8 mm	0.071 "	30 AWG	Braid	Fluorinated Ethylene-Propylene (FEP)	69.5	0.033 in	0.84 mm	100 ft	30.48 m
Belden Inc. 83265 0091000	95 %	7	38 AWG	Tetrafluoroethylene (TFE)	200 °C	-70 °C	304.8 m	1000 ft	Coaxial	50 Ohms	Copper Silver Coated	Copper Covered Silver Coated Steel	1.8 mm	0.071 "	30 AWG	Braid	Fluorinated Ethylene-Propylene (FEP)	69.5	0.033 in	0.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1605.68
		3	$ 1485.47
		5	$ 1433.95
		7	$ 1399.60
Newark	Spool of 500	1	$ 1585.02
		5	$ 1523.72
		10	$ 1471.18

Description

General part information

83265 Series

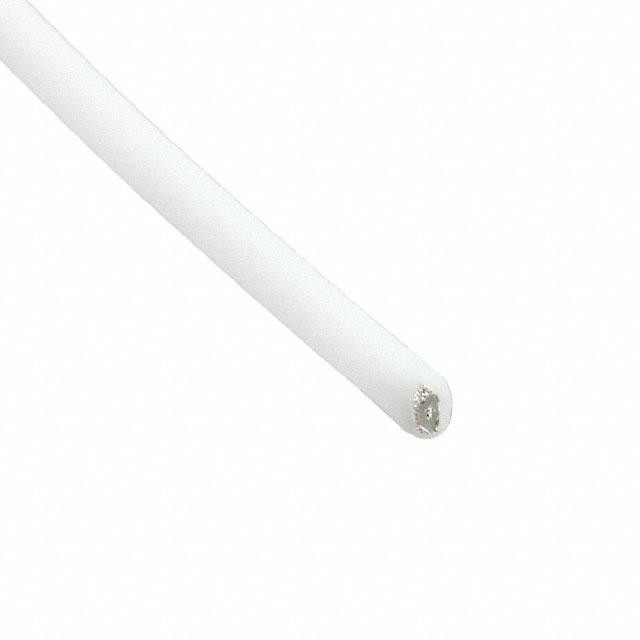

The 83265 009500 is a Coaxial Cable with stranded silver-plated copper-covered steel conductor and TFE PTFE insulation. This RG178B coaxial cable comes with a white FEP jacket and silver-plated copper braid shield (95% coverage). The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna.
