R432531000

R432531000

Active
Radiall USA, Inc.

COUPLER: SMA 2-4GHZ 3 DB

Find alt
R432531000

R432531000

Active
Radiall USA, Inc.

COUPLER: SMA 2-4GHZ 3 DB

Find alt

Description

General part information

R432531000

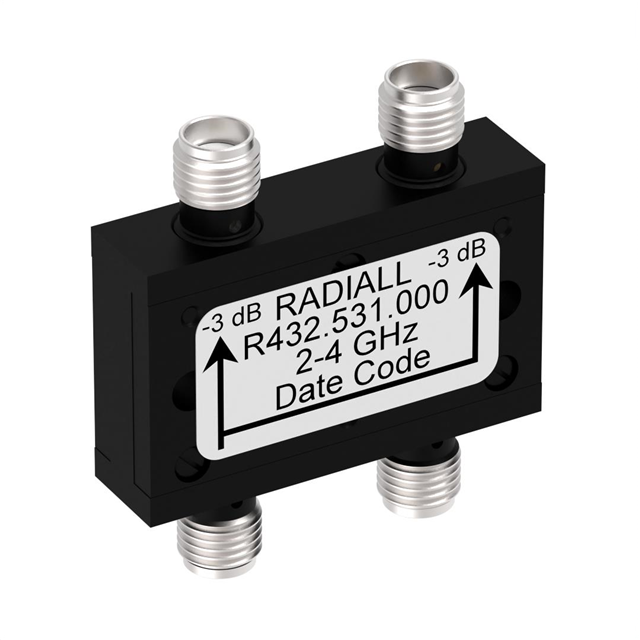

RF Directional Coupler General Purpose 2GHz ~ 4GHz 3dB 80W Module, SMA Connectors

Technical Specifications

Parameters and characteristics for this part

SpecificationR432531000
ApplicationsGeneral Purpose
Coupler TypeStandard
Coupling Factor3 dB
Frequency (Max)4 GHz
Frequency (Min)2 GHz
Insertion Loss0.3 dB
Isolation23 dB
Package / CaseModule, SMA Connectors
Power - Max80 W
