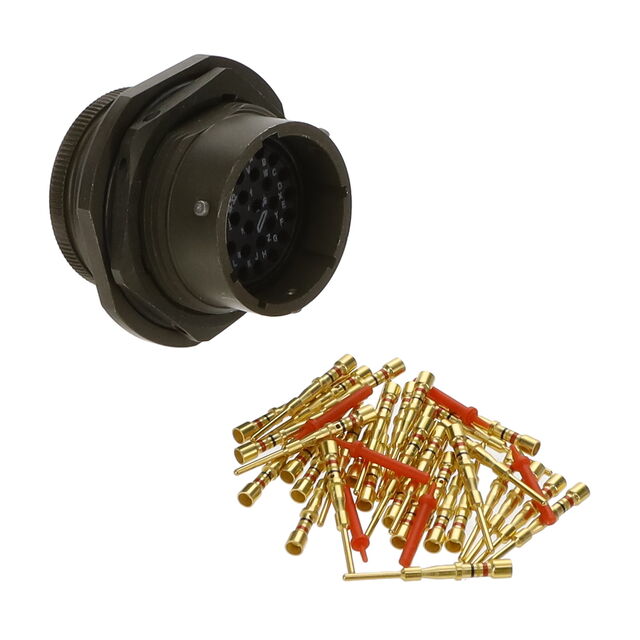

MS3124E18-32P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3124E18-32P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3124E18-32P | MS3124E18 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 32 | 32 |
| Shell Size - Insert [Min] | 18 | 18 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 245.14 | |
| 10 | $ 227.16 | |||
| 25 | $ 218.99 | |||
MS3124E18 Series
RECEPT
| Part | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Insert Material | Grade | Shell Material | Termination | Orientation | Color | Primary Material | Shell Finish | Connector Type | Mounting Feature | Shielding | Applications | Ingress Protection | Contact Finish - Mating | Fastening Type | Voltage Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3124E18-30S | |||||||||||||||||||||||
Amphenol Industrial Operations MS3124E18-32S | MIL-DTL-26482 Series I | -55 °C | 125 °C | 7.5 A | 32 | 18 | Neoprene | Military | Aluminum | Crimp | N | Olive Drab | Metal | Olive Drab Chromate over Cadmium | Receptacle, Female Sockets | Bulkhead - Front Side Nut | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Environment Resistant | Gold | Bayonet Lock | 600 VAC | Copper Alloy |
Amphenol Industrial Operations MS3124E18-11P | |||||||||||||||||||||||
Amphenol Industrial Operations MS3124E18-11P(LC) | |||||||||||||||||||||||
Amphenol Industrial Operations MS3124E18-32P | MIL-DTL-26482 Series I | -55 °C | 125 °C | 7.5 A | 32 | 18 | Neoprene | Military | Aluminum | Crimp | N | Olive Drab | Metal | Olive Drab Chromate over Cadmium | Male Pins, Receptacle | Bulkhead - Front Side Nut | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Environment Resistant | Gold | Bayonet Lock | 600 VAC | Copper Alloy |
Description
General part information
MS3124E18 Series
32 Position Circular Connector Receptacle, Male Pins Crimp
