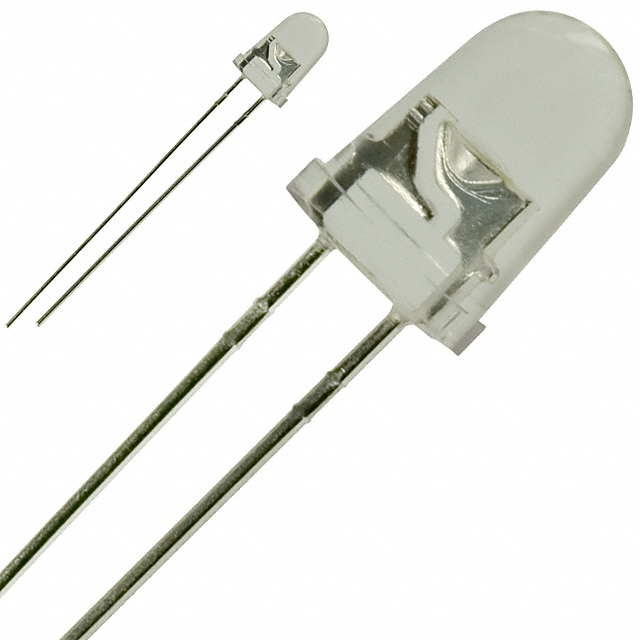

UW5805S
ObsoleteStanley Electric Co
LED WHITE CLEAR 5MM T/H
UW5805S
ObsoleteStanley Electric Co
LED WHITE CLEAR 5MM T/H
Description
General part information
UW5805S
White LED Indication - Discrete 3.7V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | UW5805S |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 7.8 mm |
| Lens Color | Colorless |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 2000 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 5 mm |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 3.7 V |
