1755-1-1/2X82-1/2FT

Active

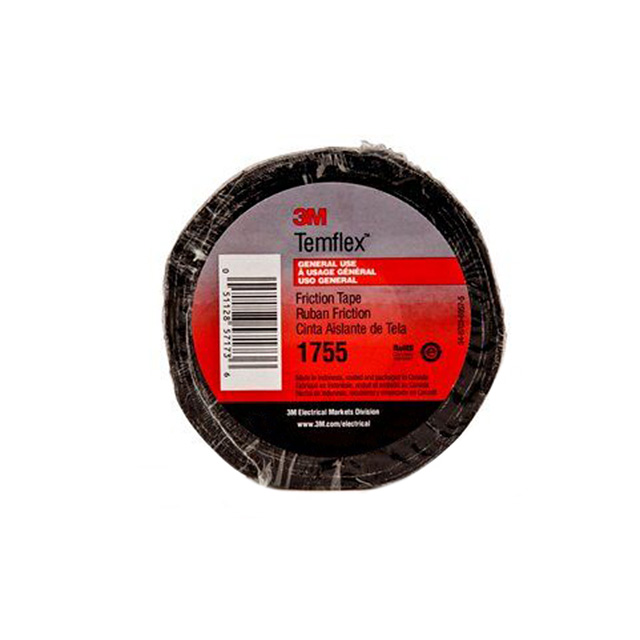

FRICTION TAPE 1 1/2" X 82 1/2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

FRICTION TAPE 1 1/2" X 82 1/2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1755-1-1/2X82-1/2FT	1755 Series

Adhesive	Rubber	Rubber
Backing, Carrier	Cotton Cloth	Cotton Cloth
Color	Black	Black
Length	25.1 m	18.3 - 25.1 m
Length	27.5 yds	27.5 - 60 yds
Length	82.5 ft	60 - 82.5 ft
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	-	27 °C
Storage/Refrigeration Temperature	-	81 °F
Storage/Refrigeration Temperature	-	10 °C
Storage/Refrigeration Temperature	-	10 °C
Tape Type	Friction	Friction, Electrical
Temperature Range [Max]	80 °C	80 °C
Temperature Range [Min]	-10 °C	-10 °C
Thickness	0.33 mm	0.33 mm
Thickness	13 mils	13 mils
Thickness	0.013 in	0.013 in
Thickness - Backing, Carrier	-	1 mils
Thickness - Backing, Carrier	-	0.025 mm
Thickness - Backing, Carrier	-	0.001 "
Width	-	0.75 in
Width	-	19.05 mm
Width	-	0.75 in
Width [x]	38.1 mm	25.4 - 38.1 mm
Width [x]	1.5 in	1 - 1.5 in

3M TEMFLEX 1755 COTTON FRICTION TAPE, BLACK, 3/4 IN X 82 1/2 FT (19 MM X 25,1

Part	Thickness	Thickness	Thickness	Shelf Life	Color	Temperature Range [Min]	Temperature Range [Max]	Width	Width	Width	Length	Length	Length	Adhesive	Tape Type	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]
3M 1755-3/4X82-1/2FT	0.33 mm	13 mils	0.013 in	60 Months	Black	-10 °C	80 °C	0.75 in	19.05 mm	0.75 in	25.1 m	27.5 yds	82.5 ft	Rubber	Friction	Date of Manufacture	27 °C	81 °F	10 °C	10 °C	Cotton Cloth
3M 1755-1X60FT	0.33 mm	13 mils	0.013 in		Black	-10 °C	80 °C				18.3 m	60 '	60 '	Rubber	Electrical						Cotton Cloth	1 mils	0.025 mm	0.001 "	25.4 mm	1 in
3M 1755-1-1/2X82-1/2FT	0.33 mm	13 mils	0.013 in	60 Months	Black	-10 °C	80 °C				25.1 m	27.5 yds	82.5 ft	Rubber	Friction	Date of Manufacture					Cotton Cloth				38.1 mm	1.5 in
3M 1755-3/4X60FT	0.33 mm	13 mils	0.013 in	60 Months	Black			0.75 in	19.05 mm	0.75 in	18.3 m	60 '	60 '	Rubber	Electrical	Date of Manufacture	27 °C	81 °F	10 °C	10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Friction Tape Rubber Adhesive Black 1.50" (38.10mm) X 82.5' (25.1m) 27.5 yds
