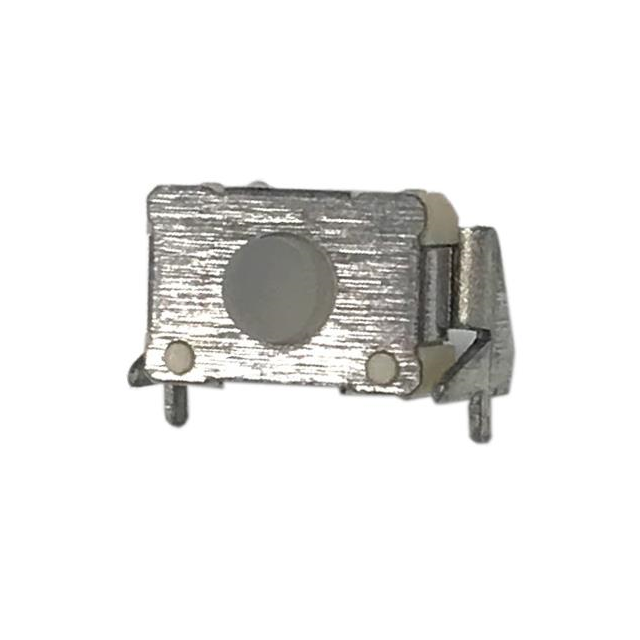

228HDSARBFR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	228HDSARBFR	228HDSA Series

Actuator Length, Right Angle	3.55 mm	3.55 mm
Actuator Orientation	Side Actuated	Side Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Blue/Red, LED	Blue/Red, LED, White
Illumination Voltage (Nominal)	-	3 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.5 mm	0.5 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Actuator Type	Illumination	Actuator Orientation	Mechanical Life	Mounting Type	Switch Function	Contact Rating @ Voltage	Circuit	Actuator Length, Right Angle	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Termination Style	Illumination Voltage (Nominal)
CTS Electrocomponents 228HDSARBFR	0.5 mm	Standard	Illuminated	Side Actuated	100000 Cycles	Through Hole, Right Angle	Off-Mom	0.05 A, 12 VDC	SPST-NO	3.55 mm	-20 C	70 °C	Blue/Red, LED	PC Pin
CTS Electrocomponents 228HDSAWFR	0.5 mm	Standard	Illuminated	Side Actuated	100000 Cycles	Through Hole, Right Angle	Off-Mom	0.05 A, 12 VDC	SPST-NO	3.55 mm	-20 C	70 °C	LED, White	PC Pin	3 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
