111-01304

Active

HELLERMANNTYTON

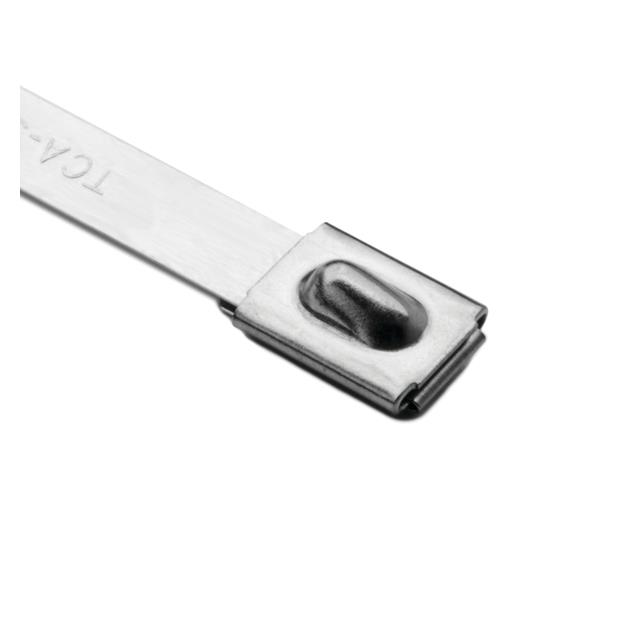

CBL TIE LOCKING SIL 922LB 2.749'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

111-01304

Active

HELLERMANNTYTON

CBL TIE LOCKING SIL 922LB 2.749'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 6.12
		100	$ 5.95
		250	$ 5.67

Description

General part information

111-01 Series

Cable Tie Mounts 1-Piece Cable Tie/Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 4000/carton

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	111-01304	111-01 Series

Bundle Diameter	254 mm	35 - 254 mm
Bundle Diameter	10 in	1.38 - 10 in
Bundle Diameter	-	22 - 150 mm
Bundle Diameter	-	0.86 - 5.91 "
Color	Silver	Black, Yellow, Blue, Gray, Beige, Brown, Silver, Green, Red
Features	Corrosion Resistant, Chemical Resistant, Weather Resistant	Halogen Free, UV Resistant, Heat Stabilized, Impact Resistant, Impact Modified, Aerial Cable Support, High Temperature, Corrosion Resistant, Chemical Resistant, Weather Resistant, UV Stabilized
Length - Actual	2.749 ft	0.328 - 2.749 ft
Length - Actual	838 mm	100 - 838 mm
Length - Actual	-	1.45 - 565.3 mm
Length - Actual	-	0.328 - 1.855 ft
Length - Actual	-	3.94 - 441.9 in
Length - Actual	-	3.93 - 7.87 in
Length - Approximate	33 in	4 - 33 in
Length - Approximate	-	6 in
Material	Stainless Steel 316	Polyacetal (POM), Polyamide (PA66), Nylon 6/6, Polyamide (PA66), Metal Detectable, Nylon 6/6, Polypropylene (PP), Polyamide (PA46), Nylon 4/6, Polyaryletherketone (PAEK), Polyetheretherketone (PEEK), Stainless Steel 316, Polyamide (PA12), Nylon 12, Ethylenterafluorineethylene (ETFE)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	922 lbs	18 - 922 lbs
Tensile Strength	418.21 kg	8.16 - 418.21 kg
Width	-	4.83 - 12.5 mm
Width	-	0.1 - 0.492 in
Width	-	2.54 - 8 mm
Width [y]	16 mm	2.4 - 16 mm
Width [y]	0.63 "	0.094 - 0.63 in
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

111-01 Series

Cable Tie Mounts 1-Piece Cable Tie/Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 4000/carton

Part	Length - Approximate	Mounting Type	Tensile Strength	Tensile Strength	Material	Length - Actual [x]	Length - Actual [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Wire/Cable Tie Type	Color	Width	Width [x]	Length - Actual [x]	Features	Width [y]	Width [y]	Bundle Diameter	Bundle Diameter	Width [x]	Length - Actual	Length - Actual	Length - Approximate [x]
HELLERMANNTYTON 111-01569	20.75 in	Free Hanging (In-Line)	22.68 kg	50 lbs	Polyacetal (POM)	530 mm	1.739 ft	150 mm	5.91 "	Locking, Standard	Black	8.89 mm	0.35 in
HELLERMANNTYTON 111-01934	4 in	Free Hanging (In-Line)	8.16 kg	18 lbs	Polyamide (PA66), Nylon 6/6	100 mm	0.328 ft	22 mm	0.86 in	Locking, Standard				3.94 in	Halogen Free	0.096 in	2.45 mm
HELLERMANNTYTON 111-01168	15 in	Free Hanging (In-Line)	22.68 kg	50 lbs	Metal Detectable, Nylon 6/6, Polyamide (PA66)					Locking, Standard	Yellow	4.83 mm	0.19 in					109.22 mm	4.3 in
HELLERMANNTYTON 111-01572	20.75 in	Free Hanging (In-Line)	79.4 kg	175 lbs	Polyacetal (POM)	530 mm	1.739 ft	150 mm	5.91 "	Locking, Standard	Black	8.89 mm	0.35 in
HELLERMANNTYTON 111-01668	15.25 in	Free Hanging (In-Line)	38.56 kg	85 lbs	Metal Detectable, Polypropylene (PP)	387 mm	1.27 ft	100 mm	3.94 in	Locking, Standard	Blue					0.299 in	7.59 mm
HELLERMANNTYTON 111-01568	8 in	Free Hanging (In-Line)	22.68 kg	50 lbs	Polyamide (PA46), Nylon 4/6	202 mm	0.663 ft			Locking, Standard	Gray			7.95 "		0.181 in	4.6 mm	50 mm	1.97 in
HELLERMANNTYTON 111-01138	8.75 in	Free Hanging (In-Line)	54.43 kg	120 lbs	Polyamide (PA66), Nylon 6/6	225 mm	0.738 ft	56 mm	2.2 in	Locking, Standard	Black			8.86 "	Heat Stabilized, Impact Resistant, UV Resistant	0.299 in	7.59 mm
HELLERMANNTYTON 111-01699	8 in	Free Hanging (In-Line)	45.36 kg	100 lbs	Polyaryletherketone (PAEK)	200.66 mm	0.658 ft	50.8 mm	2 in	Locking, Standard	Beige		0.315 in	7.9 in						8 mm
HELLERMANNTYTON 111-01667	15.25 in	Free Hanging (In-Line)	15.42 kg	34 lbs	Metal Detectable, Polypropylene (PP)			110 mm	4.33 "	Locking, Standard	Blue					0.181 in	4.6 mm				1.28 ft	390 mm
HELLERMANNTYTON 111-01665		Free Hanging (In-Line)	13.26 kg	29 lbs	Metal Detectable, Polypropylene (PP)	150 mm	0.492 ft			Locking, Standard	Blue			5.91 "		0.138 "	3.5 mm	35 mm	1.38 in				6 in
