Description
General part information

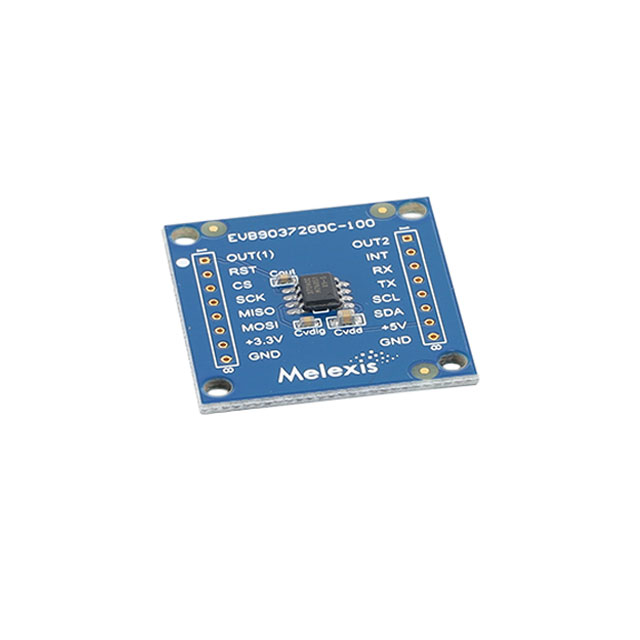

EVB90372-GDC-100-REV1.0
MLX90372 Triaxis® Magnetic, Linear, Rotary Position Sensor Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB90372-GDC-100-REV1.0 |
|---|---|
| Contents | Board |
| Embedded | No |
| Interface | PWM |
| Sensing Range | 10 mT/mm |
| Sensor Type | Rotary Position, Linear, Magnetic |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MLX90372 |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
