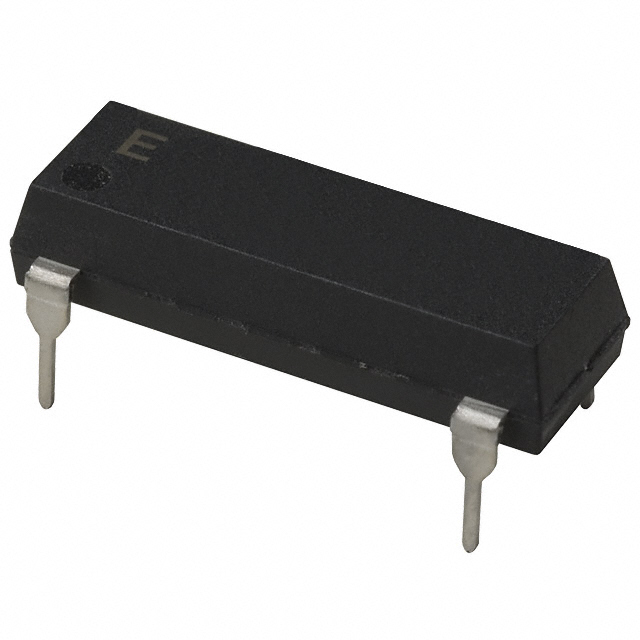

SG-51P 22.1180MC: ROHS
22.118 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 14-DIP, 4 Leads (Full Size)
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-51P 22.1180MC: ROHS |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 30 mA |
| Current - Supply (Max) | 45 mA |
| Frequency | 22.118 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.209 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | CMOS, TTL |
| Package Leads | 4 Leads |
| Package Name | 14-DIP |
| Size / Dimension Length | 0.78 in |
| Size / Dimension Width | 0.25 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
