5-103948-2
ActiveTE Connectivity Raychem Cable Protection

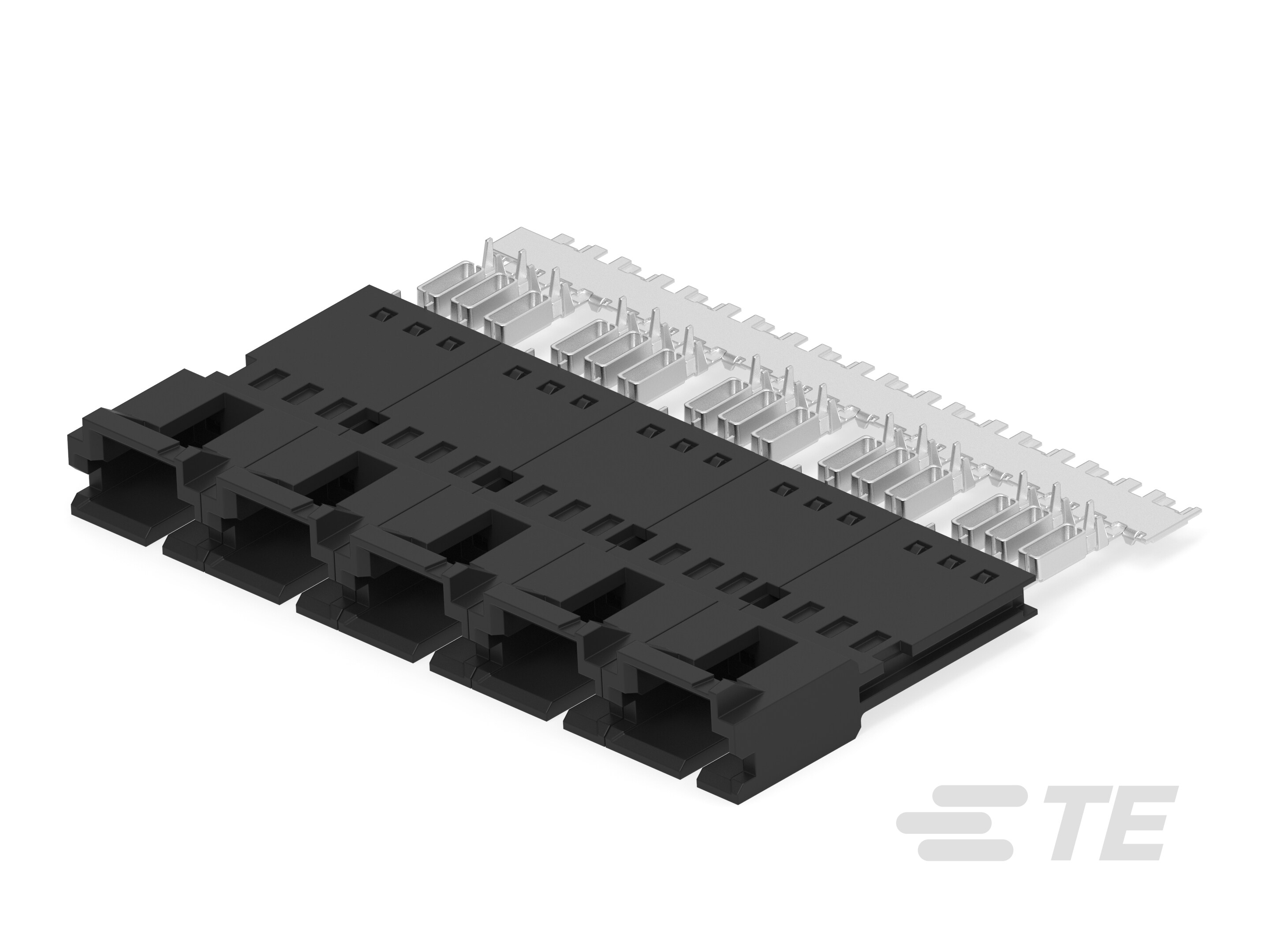

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, CRIMP/IDC TERMINAL, BLACK INSULATOR, PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-103948-2 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Type | Male Pin |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 26 AWG |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5 | $ 1.52 | |
| 10 | $ 1.44 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.20 | |||
Description
General part information
103948 Series
3 Position Rectangular Plug Connector IDC Gold 26-30 AWG
