M17/113-RG316-BULK
ActiveFairview Microwave

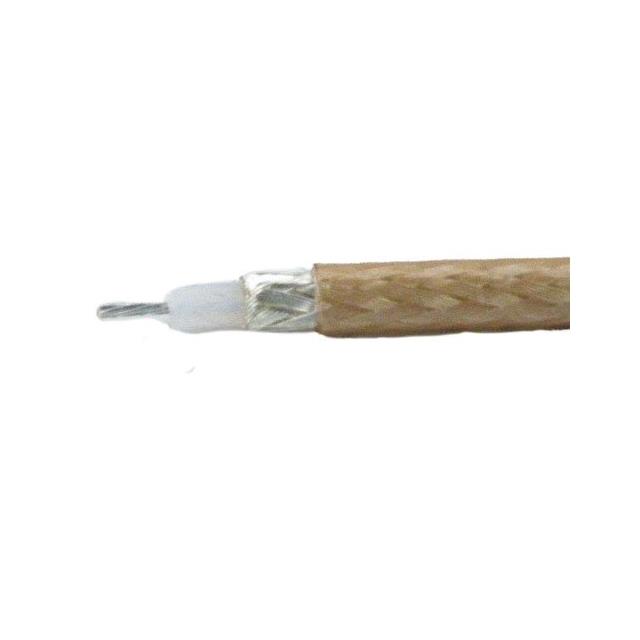

CBL COAX TAN FEP JACKET 1=1'
M17/113-RG316-BULK
ActiveFairview Microwave
CBL COAX TAN FEP JACKET 1=1'
Description
General part information
M17/113-RG316-BULK
Coaxial Cable RG-316 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | M17/113-RG316-BULK |
|---|---|
| Cable Group | RG-316 |
| Cable Type | Coaxial |
| Conductor Material | Silver Coated, Steel, Copper Covered |
| Dielectric Diameter | 0.06 in |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Impedance | 50 Ohm |
| Jacket (Insulation) Diameter | 0.098 in |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Tan |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Velocity of Propagation (VoP) | 70 % |
