Description
General part information

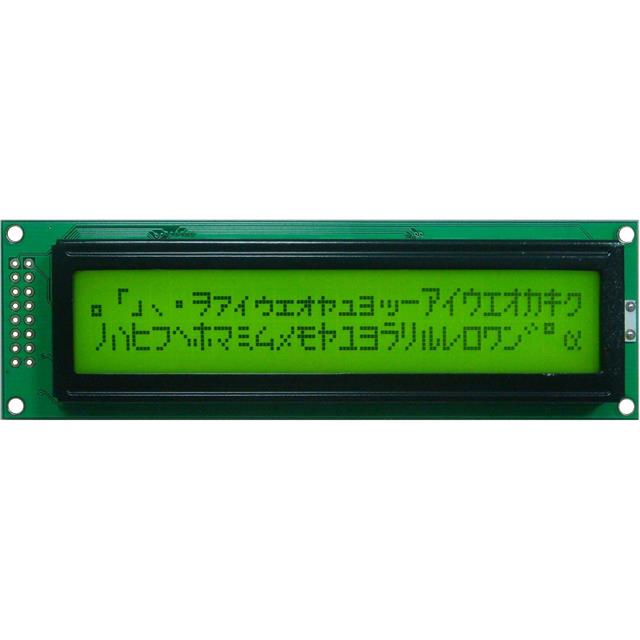

GFC2402C-YPOA-JP
Character Display Module Transflective 5 x 8 Dots STN - Y/G LED - Yellow/Green Parallel 118.00mm x 36.00mm x 15.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | GFC2402C-YPOA-JP |
|---|---|
| Background Color | Yellow, Green |
| Backlight Color | Yellow, Green |
| Backlight Type | LED |
| Character Height | 5.55 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 3.2 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U-0A |
| Display Columns | 24 |
| Display Mode | Transflective |
| Display Rows | 2 |
| Display Type | STN - Y/G |
| Dot Size Height | 0.65 mm |
| Dot Size Width | 0.6 mm |
| Interface | Parallel |
| Number of Characters | 48 characters |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Outline Height | 15 mm |
| Outline Length | 118 mm |
| Outline Width | 36 mm |
| Text Color | Black |
| Viewing Area Length | 94.5 mm |
| Viewing Area Width | 17.8 mm |
| Voltage - Supply | 5 VDC |
