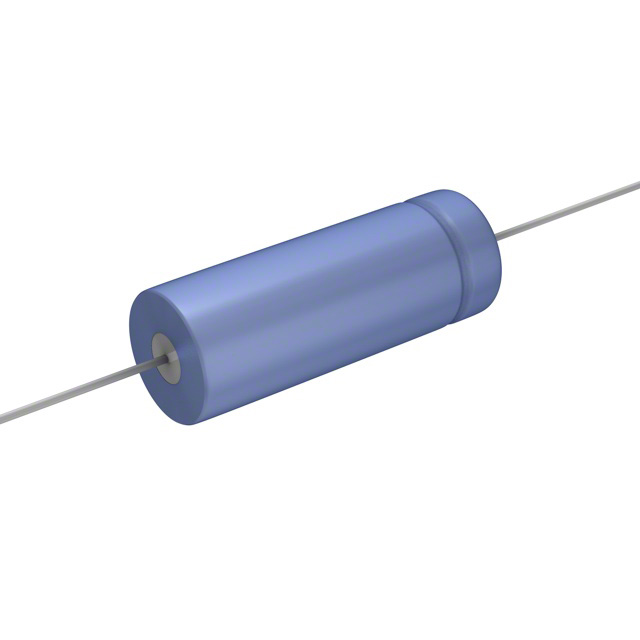

NLW20-100
ObsoleteCornell Dubilier Knowles
CAP ALUM 20UF 100V AXIAL TH
NLW20-100
ObsoleteCornell Dubilier Knowles
CAP ALUM 20UF 100V AXIAL TH
Description
General part information
NLW20-100
20 µF 100 V Aluminum Electrolytic Capacitors Axial, Can 10Ohm @ 120Hz 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | NLW20-100 |
|---|---|
| Applications | General Purpose |
| Capacitance | 20 µF |
| ESR (Equivalent Series Resistance) | 10 Ohm |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 122 mA, 146.4 mA |
| Size / Dimension Diameter | 0.4 in |
| Size / Dimension Length | 1.06 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 100 VAC/DC |
