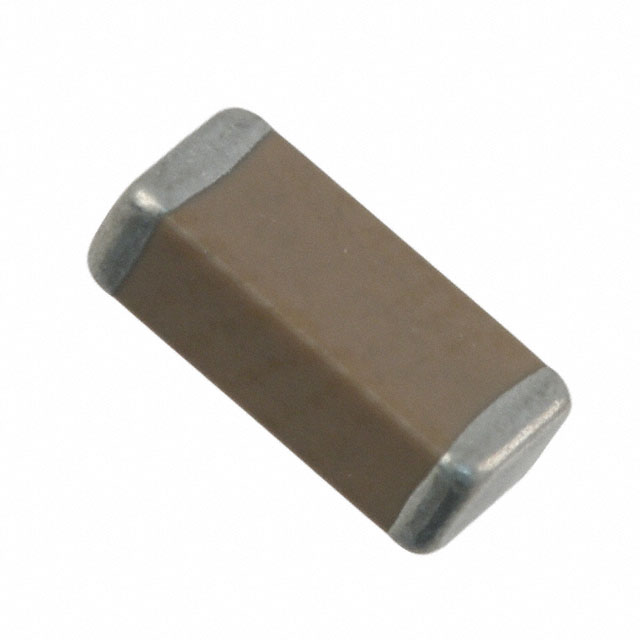

VPCT501G101J1GV001T

Obsolete

JOHANSON DIELECTRICS

CAP CER 100PF 500V C0G/NP0 0805

Search across all available documentation for this part.

Obsolete

JOHANSON DIELECTRICS

CAP CER 100PF 500V C0G/NP0 0805

Technical Specifications

Parameters and characteristics for this part

CAP CER 100PF 500V C0G/NP0 0805

Part	Capacitance	Package / Case	Tolerance	Applications	Thickness (Max) [Max] [custom]	Thickness (Max) [Max]	Features	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
JOHANSON DIELECTRICS VPCT501G101J1GV001T	100 pF	0805	5 %	SMPS Filtering	0.055 in	1.4 mm	High Voltage	500 V	-55 °C	125 °C	C0G, NP0	MLCC, Surface Mount	2.03 mm	0.08 "	0.05 "	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 pF ±5% 500V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)

Technical documentation and resources

No documents available
