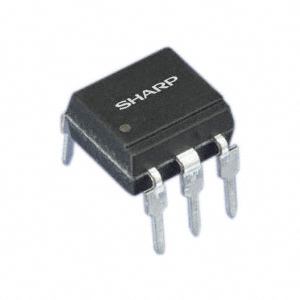

PC725V0NIZX
ObsoleteSharp Microelectronics
OPTOISO 5KV DARL W/BASE 6-SMD
PC725V0NIZX
ObsoleteSharp Microelectronics
OPTOISO 5KV DARL W/BASE 6-SMD
Description
General part information
PC725V0NIZX
Optoisolator Darlington with Base Output 5000Vrms 1 Channel 6-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | PC725V0NIZX |
|---|---|
| conditions | @ 1mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 150 mA |
| Current Transfer Ratio (Max) | 15000 %, 15000 % |
| Current Transfer Ratio (Min) | 1000 % |
| Fall Time (Typ) | 20 µs |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Darlington with Base |
| Package / Case | 6-SMD, Gull Wing |
| Package Name | 6-SMD |
| Rise Time (Typ) | 100 µs |
| Vce Saturation (Max) | 1.2 V |
| Voltage - Forward (Vf) (Typ) | 1.2 V |
| Voltage - Isolation | 5000 Vrms |
| Voltage - Output (Max) | 300 VAC |
