A6A-10CS

Active

Omron Electronics Inc-EMC Div

SW ROTARY DIP BCD COMP 0.1A 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6A-10CS

Active

Omron Electronics Inc-EMC Div

SW ROTARY DIP BCD COMP 0.1A 28V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6A-10CS	A6A Series

Actuator Level	Raised	Raised, Flush, Recessed
Actuator Type	Rotary with Shaft	Rotary with Shaft, Rotary for Tool, Rotary with Knob
Circuit	BCD Complement	Hexadecimal Complement, BCD, BCD Complement, Hexadecimal
Current Rating (Amps)	100 mA	100 mA
Electrical Life	2000 Steps	2000 Steps
Features	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant
Height Above Board	0.531 in	0.531 in
Height Above Board	13.49 mm	13.49 mm
Height Above Board	-	6.2 - 7.5 mm
Height Above Board	-	0.244 - 0.295 in
Length	10 mm	10 mm
Length	0.394 in	0.394 in
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Through Hole	Through Hole
Number of Positions	10	10
Number of Positions	-	16
Operating Temperature [Max] [custom]	158 °F	158 °F
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	28 VDC	28 VDC
Washable	True	True

A6A Series

SW ROTARY DIP HEX COMP 0.1A 28V

Part	Mounting Type	Electrical Life	Circuit	Voltage Rating	Mechanical Life	Height Above Board	Height Above Board	Length	Length	Pitch [x]	Pitch	Pitch [x]	Termination Style	Actuator Type	Actuator Level	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Features	Number of Positions	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Number of Positions
Omron Electronics Inc-EMC Div A6A-16CS	Through Hole	2000 Steps	Hexadecimal Complement	28 VDC	10000 Steps	0.531 in	13.49 mm	10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary with Shaft	Raised	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant	16	100 mA
Omron Electronics Inc-EMC Div A6A-10R	Through Hole	2000 Steps	BCD	28 VDC	10000 Steps			10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary for Tool	Raised	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant		100 mA	7.5 mm	0.295 in	10
Omron Electronics Inc-EMC Div A6A-10C	Through Hole	2000 Steps	BCD Complement	28 VDC	10000 Steps			10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary for Tool	Raised	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant		100 mA	7.5 mm	0.295 in	10
Omron Electronics Inc-EMC Div A6A-16CW	Through Hole	2000 Steps	Hexadecimal Complement	28 VDC	10000 Steps	0.531 in	13.49 mm	10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary with Knob	Raised	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant	16	100 mA
Omron Electronics Inc-EMC Div A6A-10RW	Through Hole	2000 Steps	BCD	28 VDC	10000 Steps	0.531 in	13.49 mm	10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary with Knob	Raised	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant		100 mA			10
Omron Electronics Inc-EMC Div A6A-10RS	Through Hole	2000 Steps	BCD	28 VDC	10000 Steps	0.531 in	13.49 mm	10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary with Shaft	Raised	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant		100 mA			10
Omron Electronics Inc-EMC Div A6A-16RF	Through Hole	2000 Steps	Hexadecimal	28 VDC	10000 Steps			10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary for Tool	Flush, Recessed	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant	16	100 mA	6.2 mm	0.244 "
Omron Electronics Inc-EMC Div A6A-16C	Through Hole	2000 Steps	Hexadecimal Complement	28 VDC	10000 Steps			10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary for Tool	Raised	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant	16	100 mA	7.5 mm	0.295 in
Omron Electronics Inc-EMC Div A6A-10CF	Through Hole	2000 Steps	BCD Complement	28 VDC	10000 Steps			10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary for Tool	Flush, Recessed	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant		100 mA	6.2 mm	0.244 "	10
Omron Electronics Inc-EMC Div A6A-16R	Through Hole	2000 Steps	Hexadecimal	28 VDC	10000 Steps			10 mm	0.394 in	0.1 in	Full	2.54 mm	PC Pin	Rotary for Tool	Raised	-10 °C	158 °F	IP64 - Dust Tight, Water Resistant	16	100 mA	7.5 mm	0.295 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.17
		10	$ 5.89
		25	$ 5.36
		100	$ 4.94

Description

General part information

A6A Series

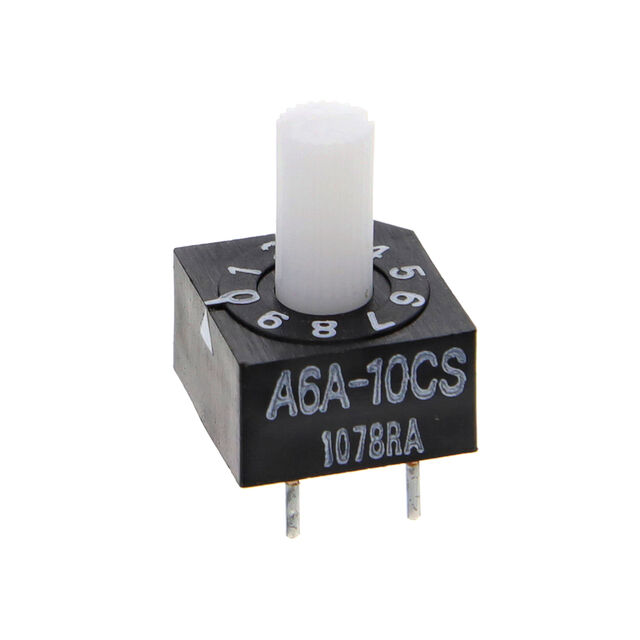

Dip Switch BCD Complement 10 Position Through Hole Rotary with Shaft Actuator 100mA 28VDC
