P-36-2
ActivePomona Electronics
MODEL P, STACKING PIN TIP PLUG, EACH END, 36", RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P-36-2 |
|---|---|
| 1st Connector | Tip Plug, Stackable |
| 2nd Connector | Tip Plug |
| 2nd Connector | Stackable |
| Cable Length | 36 in |
| Cable Length | 914.4 mm |
| Configuration | Pin Tip to Pin Tip |
| Contents | Red |
| Contents [custom] | 1 |
| Current Rating (Amps) | 5 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 55 °C |
| Temperature Range | 131 °F |
| Voltage - Rated | 3 kV |
| Voltage - Rated | 3000 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
P-36 Series

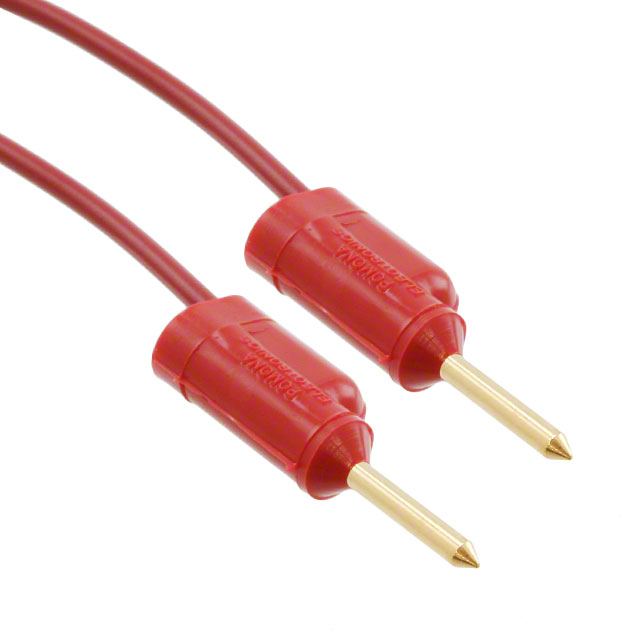

The P-36-2 is a Stacking Pin Tip Plug with a length of 36" and is in red. It mates to Model #3542, 4773 or any other standard .08 inch pin jack. It is ideal for use as jumper wires on chassis boxes. The Stacking Pin Tip Plug is gold plated brass and the insulation is polypropylene molded to the pin tip body and 20 AWG PVC wire.
