ZDT749TA

Active

Diodes Inc

DUAL PNP, 25V, 2A, SM-8

Search across all available documentation for this part.

Active

Diodes Inc

DUAL PNP, 25V, 2A, SM-8

Technical Specifications

Parameters and characteristics for this part

Specification	ZDT749TA

Current - Collector (Ic) (Max) [Max]	2 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

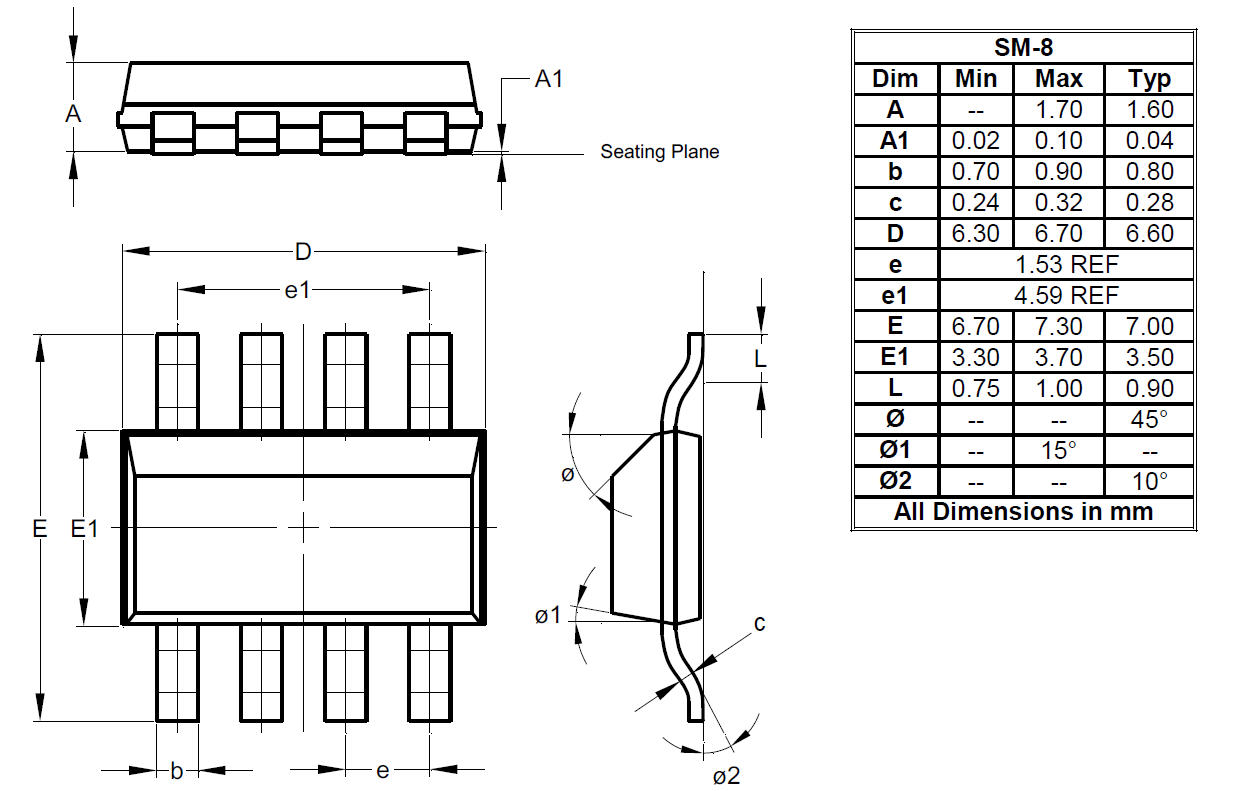

Package / Case	SOT-223-8
Power - Max [Max]	2.75 W
Supplier Device Package	SM8
Transistor Type	2 PNP (Dual)
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	25 V

Dual PNP, 25V, 2A, SM-8

Part	Mounting Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Transistor Type	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Diodes Inc ZDT749TA	Surface Mount	SM8	2 A	2 PNP (Dual)	2.75 W	-55 °C	150 °C	25 V	SOT-223-8	100 nA	500 mV	100
