ST-RJ45-S-E-CHS

Active

SchmalzTech, LLC

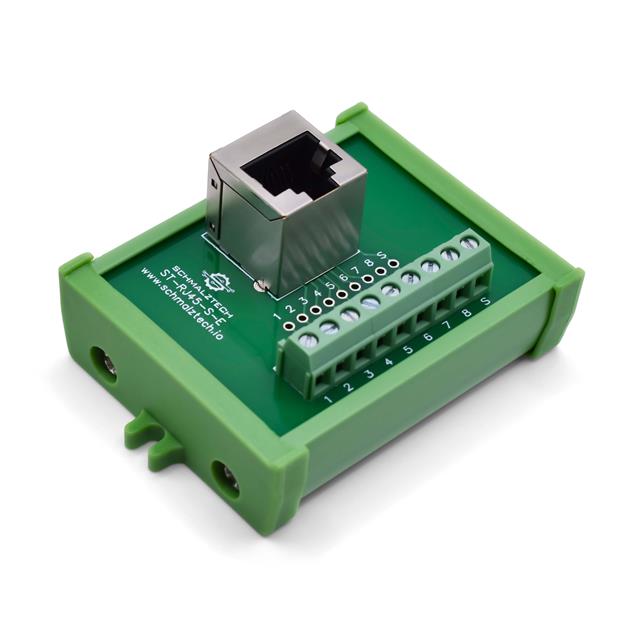

RJ45 ENCLOSED BREAKOUT BOARD

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ45 ENCLOSED BREAKOUT BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ST-RJ45-S-E-CHS	ST-RJ45 Series

Board Thickness	-	1.6 mm
Board Thickness	-	0.063 in
Material	-	FR4 Epoxy Glass
Number of Positions	9	8 - 9
Package Accepted	RJ45	RJ45
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Proto Board Type	Connector to Terminal Block	Connector to Plated Through Hole, Connector to Terminal Block
Size / Dimension	-	2.2 in
Size / Dimension	-	2 "
Size / Dimension [x]	2.33 in	2.2 - 2.33 in
Size / Dimension [x]	59.18 mm	55.88 - 59.18 mm
Size / Dimension [y]	1.89 in	1.8 - 1.89 in
Size / Dimension [y]	48.01 mm	45.72 - 50.8 mm

RJ45 PASS-THROUGH BREAKOUT BOARD

Part	Material	Package Accepted	Pitch [x]	Pitch [x]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Proto Board Type	Number of Positions	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]
SchmalzTech, LLC ST-RJ45-PASS-R-DIN	FR4 Epoxy Glass	RJ45	2.54 mm	0.1 in	2.2 in	55.88 mm	2 "	50.8 mm	Connector to Plated Through Hole	9	1.6 mm	0.063 in
SchmalzTech, LLC ST-RJ45-S-E-CHS		RJ45	2.54 mm	0.1 in		59.18 mm		48.01 mm	Connector to Terminal Block	9			2.33 in	1.89 in
SchmalzTech, LLC ST-RJ45-PASS-R-FT	FR4 Epoxy Glass	RJ45	2.54 mm	0.1 in	2.2 in	55.88 mm	2 "	50.8 mm	Connector to Plated Through Hole	9	1.6 mm	0.063 in
SchmalzTech, LLC ST-RJ45-R-DIN	FR4 Epoxy Glass	RJ45	2.54 mm	0.1 in		55.88 mm		45.72 mm	Connector to Terminal Block	8	1.6 mm	0.063 in	2.2 in	1.8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RJ45 ENCLOSED BREAKOUT BOARD

Technical documentation and resources
