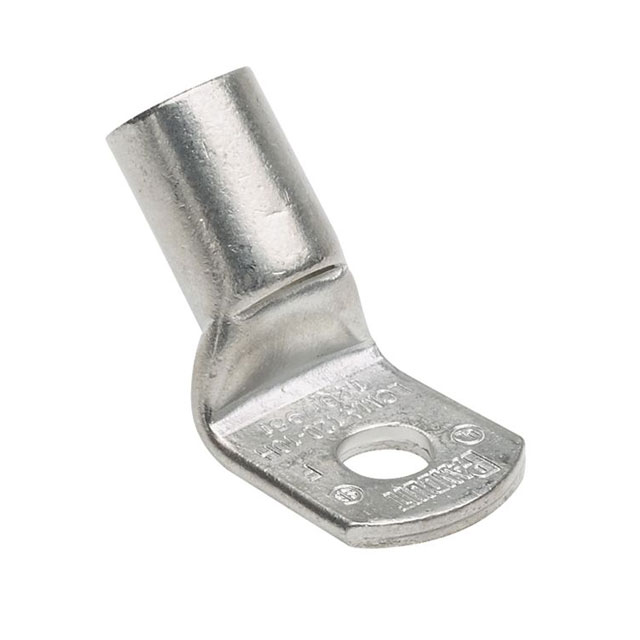

Specification	LCMA25-6H-C

Contact Finish	Tin
Contact Material	Copper
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line), 45° Angle
Stud/Tab Size	M6 Stud, M6
Terminal Type	Tubular (Battery Lugs), Flat Sided
Termination	Crimp
Width - Outer Edges	0.551 in
Wire Gauge (Cross-Sectional Area)	16 mm²

LCMA Series

Part	Termination	Wire Gauge (Cross-Sectional Area)	Stud/Tab Size	Mounting Type	Contact Material	Width - Outer Edges	Terminal Type	Contact Finish	Insulation	Thickness	Length - Overall	Wire Gauge (Cross-Sectional Area) (Max)	Wire Gauge (Cross-Sectional Area) (Min)
Panduit Corp LCMA240-12F-X	Crimb Flag	240 mm²	M12 M12 Stud	Free Hanging (In-Line) Right Angle	Copper	1.476 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated
Panduit Corp LCMA185-16F-X	Crimb Flag	185 mm²	M16 M16 Stud	Free Hanging (In-Line) Right Angle	Copper	1.319 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated
Panduit Corp LCMA70-10-L	Crimp	70 mm²	M10 M10 Stud	Free Hanging (In-Line)	Copper	0.819 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated	0.112 in	2.106 in
Panduit Corp LCMA50-8H-L	Crimp	50 mm²	M8 M8 Stud	45° Angle Free Hanging (In-Line)	Copper	0.709 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated
Panduit Corp LCMA25-8H-C	Crimp	16 mm²	M8 M8 Stud	45° Angle Free Hanging (In-Line)	Copper	0.61 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated
Panduit Corp LCMA6-5-C	Crimp		M5 M5 Stud	Free Hanging (In-Line)	Copper	0.394 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated	0.046 in	1.083 in	6 mm²	4 mm²
Panduit Corp LCMA70-6-L	Crimp	70 mm²	M6 M6 Stud	Free Hanging (In-Line)	Copper	0.819 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated	0.112 in	2.106 in
Panduit Corp LCMA25-6-C	Crimp	25 mm²	M6 M6 Stud	Free Hanging (In-Line)	Copper	0.551 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated	0.063 in	1.457 in
Panduit Corp LCMA185-16-X	Crimp	185 mm²	M16 M16 Stud	Free Hanging (In-Line)	Copper	1.319 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated	0.173 in	2.854 in
Panduit Corp LCMA300-16-5	Crimp	300 mm²	M16 M16 Stud	Free Hanging (In-Line)	Copper	1.673 in	Flat Sided Tubular (Battery Lugs)	Tin	Non-Insulated	0.213 in	3.72 in
