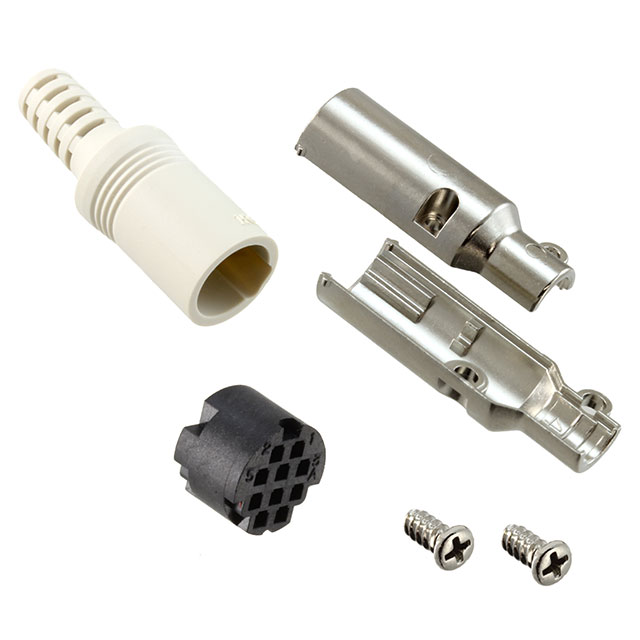

Specification	HR212-10P-10PC(72)

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Snap-In
Features	Backshell, Strain Relief
Housing Color	Silver
Insert Material	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-15 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10
Shell Size - Insert	10
Shielding	Shielded
Type	For Male Pins

HR212 Series

Part	Termination	Backshell Material, Plating	Contact Finish - Mating	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Connector Type	Color	Contact Finish Thickness - Mating	Number of Positions	Voltage Rating (DC)	Voltage Rating (AC)	Shielding	Contact Material	Shell Size - Insert	Shell Size - Insert	Fastening Type	Material Flammability Rating	Insert Material	Features	Shell Material	Shell Finish	Primary Material	Current Rating	Mounting Feature
Hirose Electric Co Ltd HR212-10LP-8P(71)	Solder Cup	Polypropylene (PP)	Tin	Free Hanging (In-Line) Right Angle	60 °C	-15 °C	Keyed	Male Pins Plug	Black Silver	39.4 µin	8	140 VDC	100 VAC	Shielded	Copper Alloy	10	10	Snap-In	UL94 V-0	PBT Polybutylene Terephthalate	Backshell Strain Relief	Zinc Alloy	Nickel	Metal
Hirose Electric Co Ltd HR212-10RC-10SDL(72)
Hirose Electric Co Ltd HR212-10P-8P(73)	Solder Cup	Polyvinyl Chloride (PVC)	Gold	Free Hanging (In-Line)	60 °C	-15 °C	Keyed	Male Pins Plug	Black Silver	8 µin	8	140 VDC	100 VAC	Shielded	Copper Alloy	10	10	Snap-In	UL94 V-0	PBT Polybutylene Terephthalate	Backshell Strain Relief	Zinc Alloy	Nickel	Metal
Hirose Electric Co Ltd HR212-10P-8P(44)	Solder Cup		Gold	Free Hanging (In-Line)	60 °C	-15 °C	Keyed	Male Pins Plug	Beige Silver		8	140 VDC	100 VAC	Shielded		10	10	Snap-In	UL94 V-0		Backshell Strain Relief				1 A
Hirose Electric Co Ltd HR212-10RC-10SDL(74)	Solder		Gold	Right Angle Through Hole	60 °C	-15 °C	Keyed	Female Sockets Receptacle	Black Silver	8 µin	10	140 VDC	100 VAC	Shielded	Phosphor Bronze	10	10	Snap-In	UL94 V-0	PBT Polybutylene Terephthalate	Board Guide Ground	Polybutylene Terephthalate (PBT)	Tin	Plastic
Hirose Electric Co Ltd HR212-10P-8P(74)	Solder Cup	Polyvinyl Chloride (PVC)	Gold	Free Hanging (In-Line)	60 °C	-15 °C	Keyed	Male Pins Plug	Beige Silver	8 µin	8	140 VDC	100 VAC	Shielded	Copper Alloy	10	10	Snap-In	UL94 V-0	PBT Polybutylene Terephthalate	Backshell Strain Relief	Zinc Alloy	Nickel	Metal
Hirose Electric Co Ltd HR212-10RC-10SDL(02)
Hirose Electric Co Ltd HR212-10R-8SDL(74)
Hirose Electric Co Ltd HR212-10R-8SD(73)	Solder		Tin	Through Hole	60 °C	-15 °C	Keyed	Female Sockets Receptacle	Black Silver	39.4 µin	8	140 VDC	100 VAC	Shielded	Phosphor Bronze	10	10	Snap-In	UL94 V-0	PBT Polybutylene Terephthalate	Ground	Polybutylene Terephthalate (PBT)	Tin	Plastic		Flange
Hirose Electric Co Ltd HR212-10RA-8SDL(71)
