Specification	355-036-521-278

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount, Through Hole
Number of Positions	36, 18
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

355-036 Series

Part	Card Thickness (Min)	Card Thickness (Max)	Pitch	Contact Material	Number of Positions	Contact Type	Mounting Type	Contact Finish	Color	Operating Temperature (Min)	Operating Temperature (Max)	Flange Feature	Card Type	Gender	Termination	Number of Rows	Read Out	Contact Finish Thickness	Termination Rows	Material - Insulation	Features	Flange Feature Diameter
EDAC Inc. 355-036-500-268	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Panel Mount	Gold	Black	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Female	Solder Eyelet(s)	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic
EDAC Inc. 355-036-521-268	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Panel Mount Through Hole	Gold	Black	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Female	Solder	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic
EDAC Inc. 355-036-556-208	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Board Edge Straddle Mount	Gold	Black	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Female	Solder	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 355-036-555-268	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Board Edge Straddle Mount	Gold	Black	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Female	Solder	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic	Card Extender Card Guides
EDAC Inc. 355-036-520-502	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Panel Mount Through Hole	Gold	Black	-40 °C	105 °C	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Female	Solder	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic		0.128 in
EDAC Inc. 355-036-500-207	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Panel Mount	Gold	Black	-40 °C	105 °C	Flush Mount M3 Threaded Insert Top Opening	Dual Edge Non Specified	Female	Solder Eyelet(s)	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic
EDAC Inc. 355-036-555-203	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Board Edge Straddle Mount	Gold	Black	-40 °C	105 °C	Floating Bobbin Flush Mount	Dual Edge Non Specified	Female	Solder	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic	Card Extender	0.116 in
EDAC Inc. 355-036-500-503	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Panel Mount	Gold	Black	-40 °C	105 °C	Floating Bobbin Flush Mount	Dual Edge Non Specified	Female	Solder Eyelet(s)	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic		0.116 in
EDAC Inc. 355-036-555-578	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Board Edge Straddle Mount	Gold	Black	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Female	Solder	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic	Card Extender Card Guides

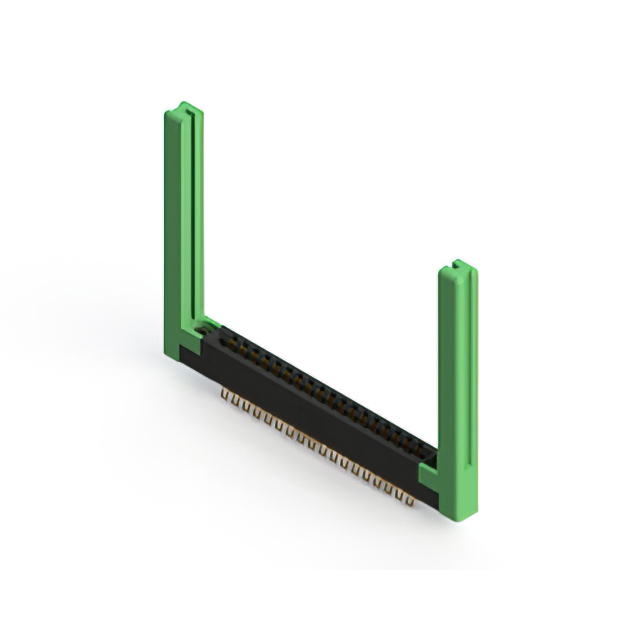

EDAC Inc. 355-036-555-258	0.054 in	0.07 in	0.156 in	Copper Alloy	18 36	Semi Bellows	Board Edge Straddle Mount	Gold	Black	-40 °C	105 °C	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Female	Solder	2	Dual	10 Ąin	2 rows	Polyester Thermoplastic	Card Extender Card Guides
