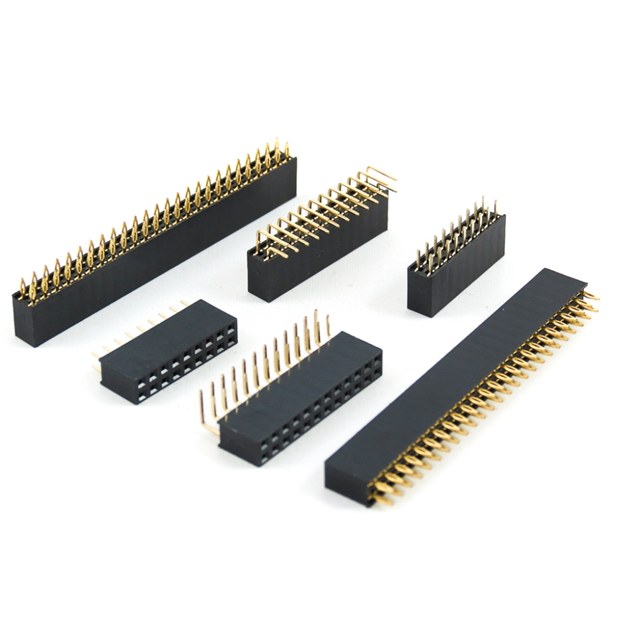

2044-2X09G00SA

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 18 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2044-2X09G00SA

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 18 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2044-2X09G00SA

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

2044-2 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Mounting Type	Number of Positions	Current Rating (Amps)	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Termination	Fastening Type	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Contact Shape	Insulation Material	Contact Material	Insulation Height	Insulation Height	Contact Type
Oupiin 2044-2X18G00SA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole	36	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.335 "	8.51 mm	Female Socket
Oupiin 2044-2X20G00SA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole	40	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.335 "	8.51 mm	Female Socket
Oupiin 2044-2X03TSB	105 ░C	-55 °C	0.1 in	2.54 mm		UL94 V-0		Tin		Through Hole	6	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.335 "	8.5 mm	Female Socket
Oupiin 2044-2X06G00RA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole Right Angle	12	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.197 in	5 mm	Female Socket
Oupiin 2044-2X20G00RA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole Right Angle	40	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.197 in	5 mm	Female Socket
Oupiin 2044-2X17G00SA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole	34	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.335 "	8.51 mm	Female Socket
Oupiin 2044-2X23G00SA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole	46	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.335 "	8.51 mm	Female Socket
Oupiin 2044-2X13G00SA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole	26	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.335 "	8.51 mm	Female Socket
Oupiin 2044-2X40G00SA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole	80	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.335 "	8.51 mm	Female Socket
Oupiin 2044-2X35G00SA	105 ░C	-55 °C	0.1 in	2.54 mm	Flash	UL94 V-0	Gold	Gold	Flash	Through Hole	70	2 A	All	2.54 mm	0.1 in	Socket	Solder	Push-Pull	2	3.2 mm	0.126 in	Square	Glass Filled Polyester Thermoplastic	Copper Alloy	0.335 "	8.51 mm	Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.57

Description

General part information

2044-2 Series

18 Position Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
