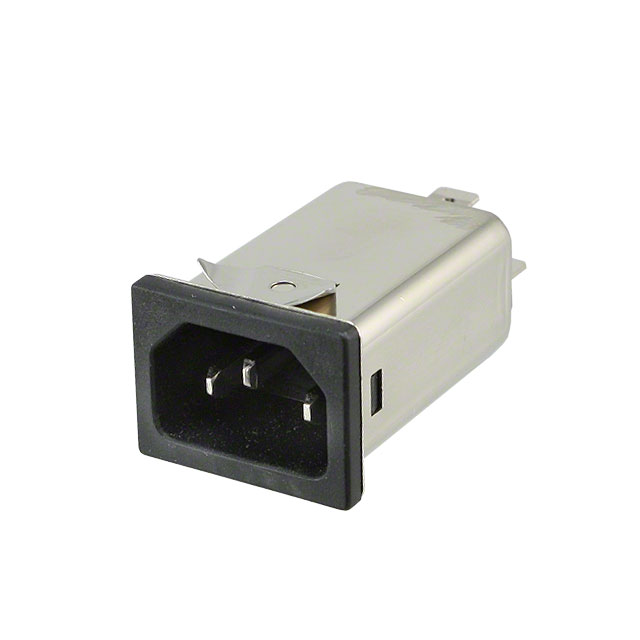

06GENG3E-R

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	06GENG3E-R	06GENG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A	6 A
Current Rating - Filter	6 A	6 A
Features	Bleed Resistor	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Thickness [Max]	0.063 in	0.063 in
Panel Thickness [Max]	1.6 mm	1.6 mm
Panel Thickness [Min]	0.81 mm	0.81 mm
Panel Thickness [Min]	0.032 in	0.032 in
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Connector Type	Connector Style	Mounting Type	Current Rating - Filter	Current Rating - Appliance Inlet	Approval Agency	Features	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Termination	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type
Delta Electronics 06GENG3E-R	Male Blades, Receptacle	IEC 320-C14	Panel Mount, Snap-In	6 A	6 A	CSA, UL, VDE	Bleed Resistor	0.81 mm	0.032 in	0.063 in	1.6 mm	Quick Connect	115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial
Delta Electronics 06GENG3E	Male Blades, Receptacle	IEC 320-C14	Panel Mount, Snap-In	6 A	6 A	CSA, UL, VDE		0.81 mm	0.032 in	0.063 in	1.6 mm	Quick Connect	115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial
Delta Electronics 06GENG3EM	Male Blades, Receptacle	IEC 320-C14	Panel Mount, Snap-In	6 A	6 A	CSA, UL, VDE		0.81 mm	0.032 in	0.063 in	1.6 mm	Quick Connect	115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial, Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	210	$ 4.72

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
