4282-4PG-300
ActiveConxall/Switchcraft

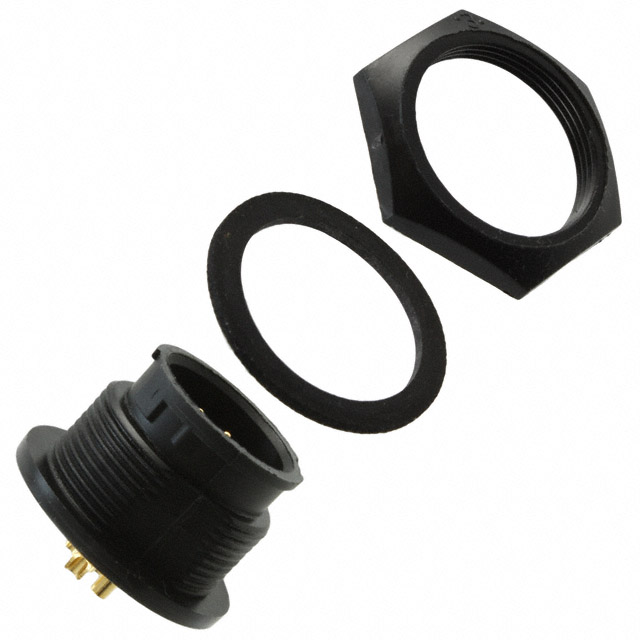

CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
4282-4PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4282-4PG-300 | 4282-4P Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
4282-4P Series
CONN RCPT MALE 4P GOLD SLDR CUP
| Part | Voltage Rating | Fastening Type | Color | Contact Finish - Mating | Shielding | Current Rating (Amps) | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Material | Orientation | Number of Positions | Primary Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 4282-4PG-300 | 600 V | Bayonet Lock | Black | Gold | Unshielded | 5.6 A | Weathertight | -40 °C | 115 °C | Male Pins, Receptacle | Brass | Keyed | 4 | Plastic | Bulkhead - Front Side Nut |
Conxall/Switchcraft 4282-4PG-3ES | 600 V | Bayonet Lock | Black | Gold | Unshielded | 5.6 A | Weathertight | -40 °C | 115 °C | Male Pins, Receptacle | Brass | Keyed | 4 | Plastic | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 6.67 | |
Description
General part information
4282-4P Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
