IP-UNCC18B

Active

Sure-Seal Legacy

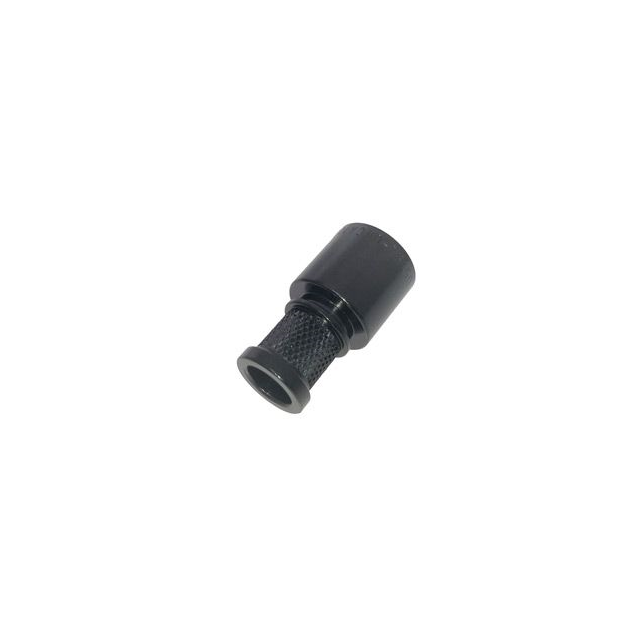

CONN BACKSH BANDING SZ18 19 BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IP-UNCC18B

Active

Sure-Seal Legacy

CONN BACKSH BANDING SZ18 19 BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.99
		10	$ 31.33
		25	$ 25.40
		50	$ 22.38
		100	$ 19.58

Description

General part information

IP-U Series

Black Connector Backshell, Banding 18, 19

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IP-UNCC18B	IP-U Series

Cable Exit	180 °	180 °
Cable Opening	-	0.492 - 1.126 in
Cable Opening	-	12.5 - 28.6 mm
Cable Opening	-	0.709 in
Cable Opening	-	18 mm
Cable Opening [custom]	0.75 in	0.312 - 1.882 in
Cable Opening [custom]	19.05 mm	7.92 - 47.8 mm
Color	Black	Black, Silver, Olive Drab, Gray, Green
Diameter - Outside	-	0.583 - 1.82 in
Diameter - Outside	-	2.291 - 46.23 mm
Diameter - Outside	-	58.19 mm
For Use With/Related Products	MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II	MIL-DTL-5015 Series, MIL-DTL-26482 Series II, MIL-DTL-38999 Series III, MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II
Includes	1 O-Ring, 1 Backshell	1 O-Ring, 1 Backshell
Material	Aluminum	Aluminum, Stainless Steel
Plating	Zinc Cobalt over Electroless Nickel	Anodized, Passivated, Electroless Nickel, Cadmium over Electroless Nickel, Zinc Nickel, Zinc Cobalt over Electroless Nickel, Zinc Nickel over Electroless Nickel
Shell Size - Insert	-	10 - 36
Shell Size - Insert	-	14, 14S, 12, B, G, 16, 18, 10SL, 16S, 17, E, 8S, 9, 8, 12S, 10
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Unshielded	Unshielded
Thread Size	-	PG29, PG21, PG13.5, PG16, PG36, PG9
Type	Banding, Backshell	Backshell, Adapter, Banding, Backshell

IP-U Series

CONN BACKSHELL ADPT SZ28 BLK

Part	Cable Exit	For Use With/Related Products	Type	Color	Material	Plating	Includes	Thread Size	Cable Opening [custom]	Cable Opening [custom]	Shielding	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]
Sure-Seal Legacy IP-UNAB28A-PG29	180 °	MIL-DTL-5015 Series	Backshell, Adapter	Black	Aluminum	Anodized	1 Backshell, 1 O-Ring	PG29	1.339 in	34 mm	Unshielded	1.82 in	46.23 mm	28
Sure-Seal Legacy IP-UNCA14A	180 °	MIL-DTL-26482 Series II, MIL-DTL-5015 Series	Backshell, Banding	Black	Aluminum	Anodized	1 Backshell, 1 O-Ring		0.531 in	13.5 mm	Unshielded				12, 14, 14S
Sure-Seal Legacy IP-USCK11P	180 °	MIL-DTL-38999 Series III	Backshell, Banding	Silver	Stainless Steel	Passivated	1 Backshell, 1 O-Ring		0.375 in	9.52 mm	Unshielded			11	B
Sure-Seal Legacy IP-UNCC24N	180 °	MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II	Backshell, Banding	Silver	Aluminum	Electroless Nickel	1 Backshell, 1 O-Ring		1 in	25.4 mm	Unshielded			24, 25
Sure-Seal Legacy IP-UNCB18A	180 °	MIL-DTL-5015 Series	Backshell, Banding	Black	Aluminum	Anodized	1 Backshell, 1 O-Ring		0.687 in	17.46 mm	Unshielded			18
Sure-Seal Legacy IP-UNAA22W-PG21	180 °	MIL-DTL-5015 Series	Backshell, Adapter	Olive Drab	Aluminum	Cadmium over Electroless Nickel	1 Backshell, 1 O-Ring	PG21			Unshielded	1.428 in	36.27 mm	22		1.126 in	28.6 mm
Sure-Seal Legacy IP-UNCB22W	180 °	MIL-DTL-5015 Series	Backshell, Banding	Olive Drab	Aluminum	Cadmium over Electroless Nickel	1 Backshell, 1 O-Ring		0.813 in	20.65 mm	Unshielded			22
Sure-Seal Legacy IP-UNAC22N-PG21	180 °	MIL-DTL-26482 Series I, MIL-DTL-26482 Series II, MIL-DTL-5015 Series	Backshell, Adapter	Silver	Aluminum	Electroless Nickel	1 Backshell, 1 O-Ring	PG21	1.193 in	30.3 mm	Unshielded	1.552 in	39.42 mm	22, 23
Sure-Seal Legacy IP-UNAC20N-PG21	180 °	MIL-DTL-26482 Series I, MIL-DTL-26482 Series II, MIL-DTL-5015 Series	Backshell, Adapter	Silver	Aluminum	Electroless Nickel	1 Backshell, 1 O-Ring	PG21	1.083 in	27.51 mm	Unshielded	1.428 in	36.27 mm	20, 21
Sure-Seal Legacy IP-UNCC10ZG	180 °	MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II	Backshell, Banding	Gray	Aluminum	Zinc Nickel	1 Backshell, 1 O-Ring		0.375 in	9.52 mm	Unshielded			10, 11
