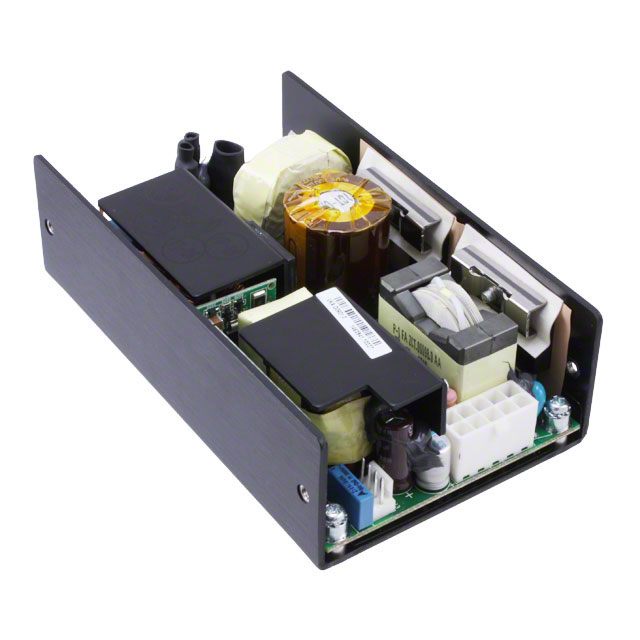

MBC250-1012G

Active

Bel Power Solutions

AC/DC CONVERTER 12V 120W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 120W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 12V 120W

Part	Voltage - Isolation	Efficiency	Features	Current - Output 1 [custom]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Type	Power (Watts)	Power (Watts)	Mounting Type	Current - Output 1
Bel Power Solutions MBC250-1012G	4000 V	90 %	PFC, Universal Input	19 A	90 VAC	264 VAC	12 V	-20 °C	70 °C	1	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Medical	Open Frame	120 W	228 W	Chassis Mount
Bel Power Solutions MBC250-1024G	4000 V	90 %	PFC, Universal Input		90 VAC	264 VAC	24 V	-20 °C	70 °C	1	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Medical	Open Frame	250 W		Chassis Mount	10.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	60	$ 207.24

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available
