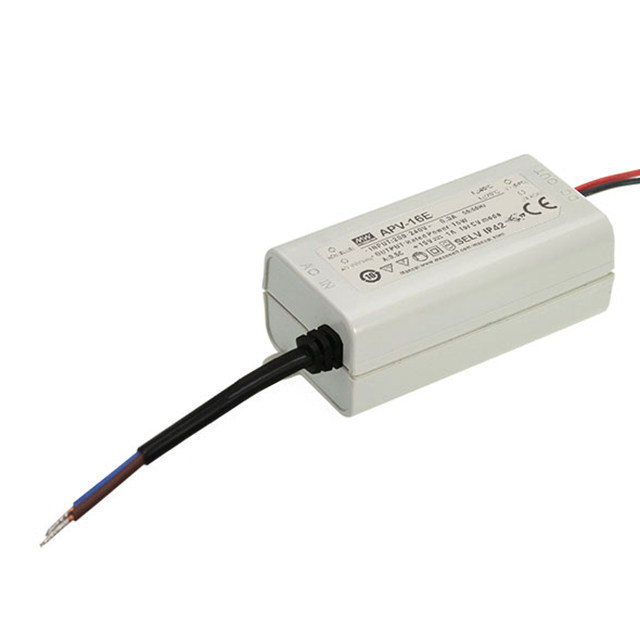

APV-16E-24
ObsoleteMEAN WELL USA Inc.
LED DRIVER CV AC/DC 24V 670MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APV-16E-24
ObsoleteMEAN WELL USA Inc.
LED DRIVER CV AC/DC 24V 670MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APV-16E-24 |
|---|---|
| Approval Agency | ENEC, CE |
| Current - Output (Max) [Max] | 670 mA |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 16 W |
| Ratings | IP42 |
| Size / Dimension [x] | 3.03 in |
| Size / Dimension [x] | 77 mm |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [z] | 29 mm |
| Size / Dimension [z] | 1.14 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
APV-16E-24
670mA 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
