22005515-01
ActiveChogori Technologies Inc.

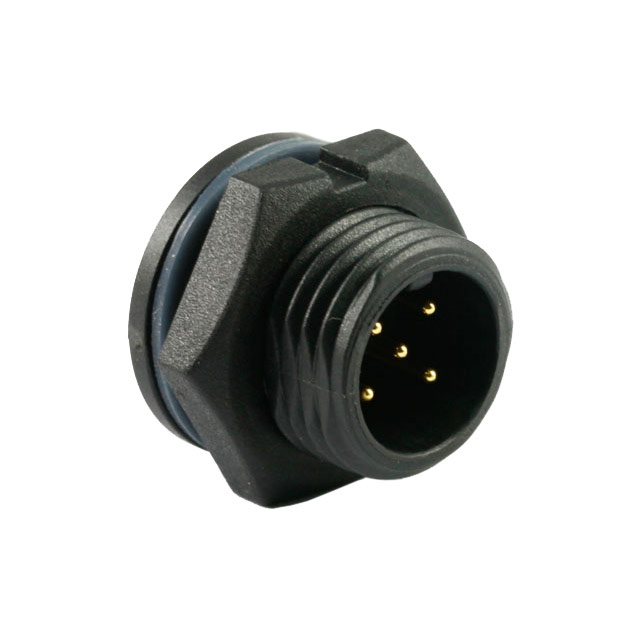

CONN RCPT MALE 5POS SOLDER CUP
22005515-01
ActiveChogori Technologies Inc.
CONN RCPT MALE 5POS SOLDER CUP
Description
General part information
22005515-01
5 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 22005515-01 |
|---|---|
| Applications | Industrial, Marine, Lighting, Communication Systems |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass, Phosphor Bronze |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 5 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -45 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 60 V |
