Description
General part information
1422677

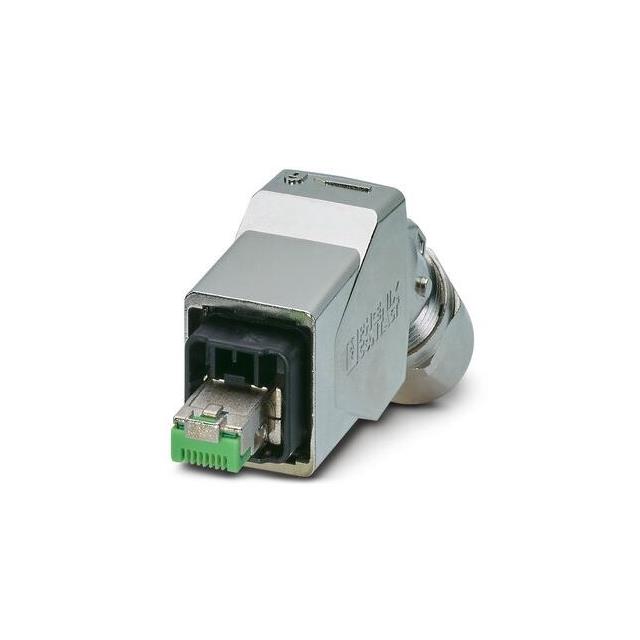

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5 IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422677 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Connector Type | Ethernet, RJ45, Plug |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 1.75 A |
| Features | Angled |
| Housing Material | Zinc Die Cast |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat5 |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
