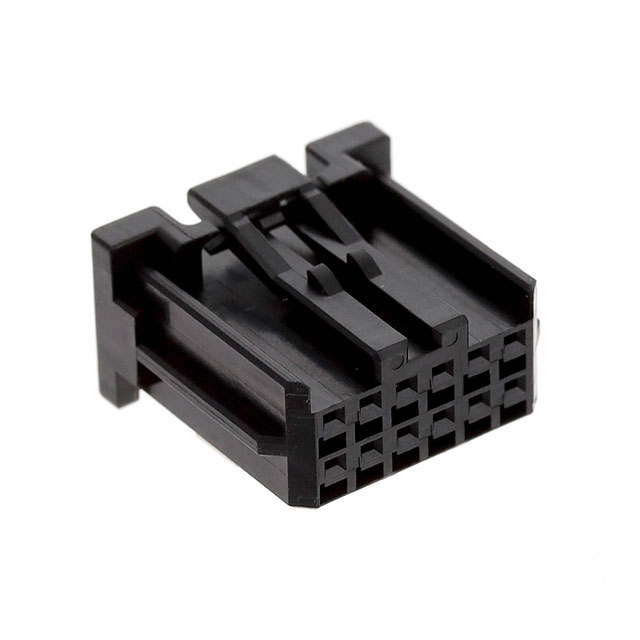

Specification	IMSA-13065S-2-12Y500

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Retainer
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.079 in
Row Spacing	0.098 in

IMSA-13065S Series

Part	Note	Contact Type	Insulation Material	Mounting Type	Contact Termination	Features	Row Spacing	Pitch	Number of Positions	Number of Rows	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Color	Fastening Type
IRISO USA Inc. IMSA-13065S-2-24Y502	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	24 pos	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-08Y500	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	8	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-20Y501	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	20	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-32Y501	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	32	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-32Y502	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	32	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-28Y501	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	28	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-16Y500	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	16	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-16Y502	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	16	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-16Y501	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	16	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-28Y502	Contacts Not Included	Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Crimp	Retainer	0.098 in	0.079 in	28	2	Receptacle	125 °C	-40 °C	Black	Locking Ramp
