DIN1855A
ActiveSwitchcraft Inc.

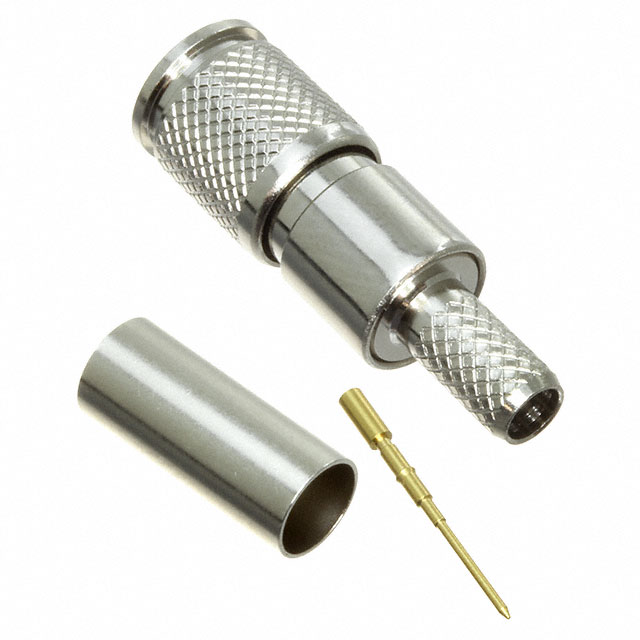

CONN 1.0/2.3 PLG STR 75OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DIN1855A
ActiveSwitchcraft Inc.
CONN 1.0/2.3 PLG STR 75OHM CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DIN1855A | DIN185 Series |
|---|---|---|
| Body Finish | Nickel | Nickel |
| Body Material | Copper Alloy | Copper Alloy |
| Cable Group | Belden 1855A | Belden 1855A, Belden 1855ENH |
| Center Contact Material | Copper Alloy | Copper Alloy |
| Center Contact Plating | Gold | Gold |
| Connector Style | 1.0/2.3 | 1.0/2.3 |
| Connector Type | Male Pin, Plug | Male Pin, Plug |
| Contact Termination | Crimp | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Frequency - Max [Max] | 3 GHz | 3 GHz |
| Housing Color | Silver | Silver |
| Impedance | 75 Ohms | 75 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector | 1 Ferrule, 1 Contact, 1 Connector |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Shield Termination | Crimp | Crimp |
DIN185 Series
CONN 1.0/2.3 PLG STR 75OHM CRIMP
| Part | Connector Style | Body Material | Body Finish | Housing Color | Shield Termination | Contact Termination | Center Contact Plating | Mounting Type | Includes | Dielectric Material | Center Contact Material | Frequency - Max [Max] | Connector Type | Impedance | Fastening Type | Number of Ports | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. DIN1855A | 1.0/2.3 | Copper Alloy | Nickel | Silver | Crimp | Crimp | Gold | Free Hanging (In-Line) | 1 Connector, 1 Contact, 1 Ferrule | Polytetrafluoroethylene (PTFE) | Copper Alloy | 3 GHz | Male Pin, Plug | 75 Ohms | Push-Pull | 1 | Belden 1855A |
Switchcraft Inc. DIN1855ENH | 1.0/2.3 | Copper Alloy | Nickel | Silver | Crimp | Crimp | Gold | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Copper Alloy | 3 GHz | Male Pin, Plug | 75 Ohms | Push-Pull | 1 | Belden 1855ENH |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.01 | |
| 10 | $ 9.01 | |||
| 100 | $ 8.05 | |||
| 1000 | $ 5.96 | |||
Description
General part information
DIN185 Series
1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
