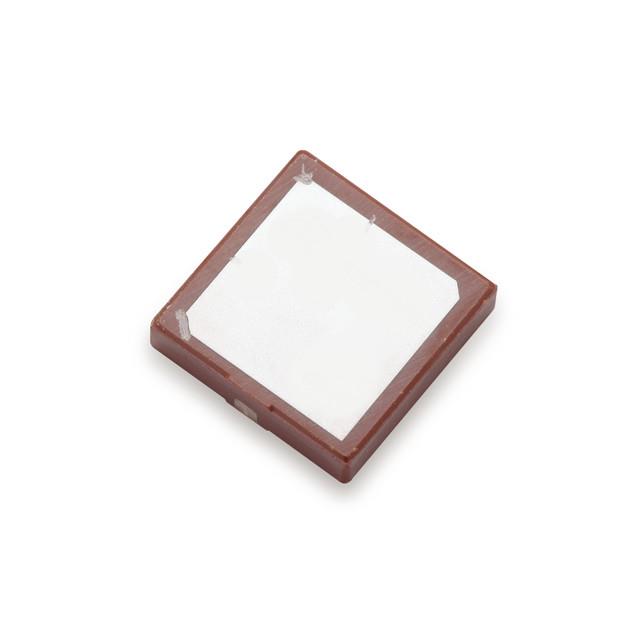

ANT1037
1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz 0.14dBi, 1.75dBi Solder Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT1037 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS, GLONASS |
| Frequency (Band) | 1.602 GHz |
| Frequency (Center) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.576 GHz |
| Frequency Range (Band 1) Minimum | 1.574 GHz |
| Frequency Range (Band 2) Maximum | 1.607 GHz |
| Frequency Range (Band 2) Minimum | 1.597 GHz |
| Gain | 1.75 dBi, 0.14 dBi |
| Height (Max) | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 1.5 |
