Description
General part information

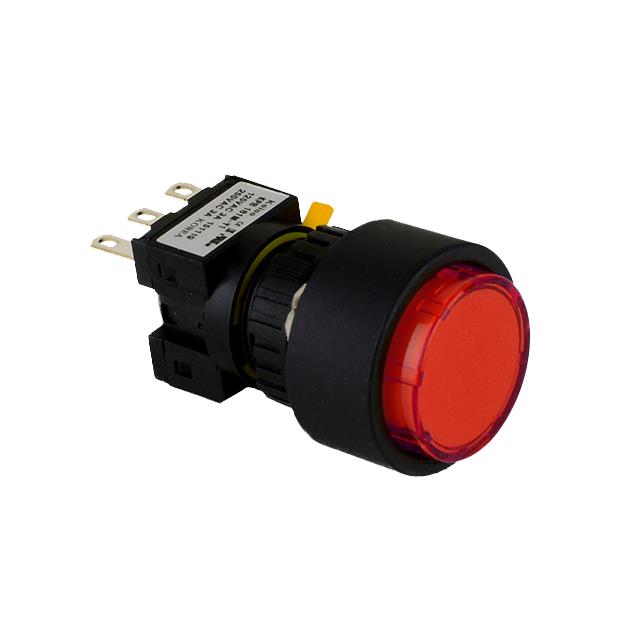

KPB161AT-R1
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | KPB161AT-R1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Flush, Button |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Red |
| Current Rating | 3 A, 270 mA |
| Electrical Life (Cycles) | 100000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 500000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -15 °C |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Off, Off-On |
| Termination Style | Quick Connect, Solder |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
