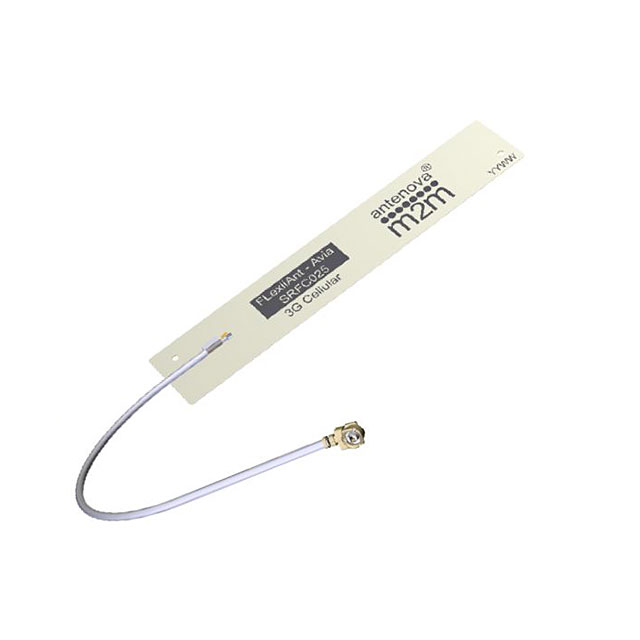

SRFC025-100

Active

Antenova

RF ANT 892MHZ/1.9GHZ FLAT 100MM

Search across all available documentation for this part.

Active

Antenova

RF ANT 892MHZ/1.9GHZ FLAT 100MM

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 892MHZ/1.9GHZ FLAT 100MM

Part	Gain	Frequency (Center/Band)	Mounting Type	Termination	Frequency Range [Min]	Frequency Range [Max]	Number of Bands	Height (Max)	Height (Max) [Max]	Antenna Type	Applications	RF Family/Standard	VSWR	Return Loss
Antenova SRFC025-100	5.4 dBi	1.9 GHz, 892 MHz	Adhesive	IPEX MHF1, U.FL (UMCC)	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	2	0.15 mm	0.006 in	Flat Patch	GSM, WCDMA	Cellular	2.2	-17 dB
Antenova SRFC025-150	5.4 dBi	1.9 GHz, 892 MHz	Adhesive	IPEX MHF1, U.FL (UMCC)	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	2	0.15 mm	0.006 in	Flat Patch	GSM, WCDMA	Cellular	2.2	-17 dB
Antenova SRFC025-200	5.4 dBi	1.9 GHz, 892 MHz	Adhesive	IPEX MHF1, U.FL (UMCC)	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	2	0.15 mm	0.006 in	Flat Patch	GSM, WCDMA	Cellular	2.2	-17 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GSM, WCDMA Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
