GLFR1608TR35M-LR
ObsoleteTDK Corporation
FIXED IND 350NH 1.2A 40 MOHM SMD
GLFR1608TR35M-LR
ObsoleteTDK Corporation
FIXED IND 350NH 1.2A 40 MOHM SMD
Description
General part information
GLFR1608TR35M-LR

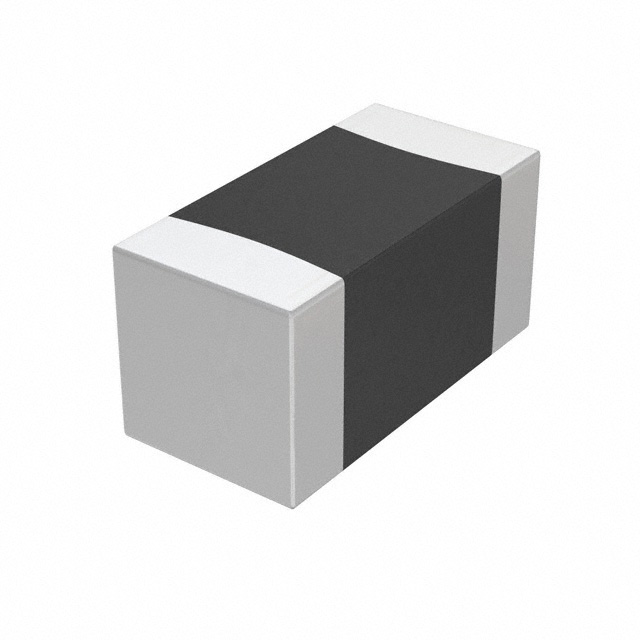

350 nH Shielded Inductor 1.2 A 40mOhm 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | GLFR1608TR35M-LR |
|---|---|
| Current - Saturation (Isat) | 0.33 mA |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 40 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 350 nH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 (1608 Metric) |
| Shielding | Shielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 20 % |
