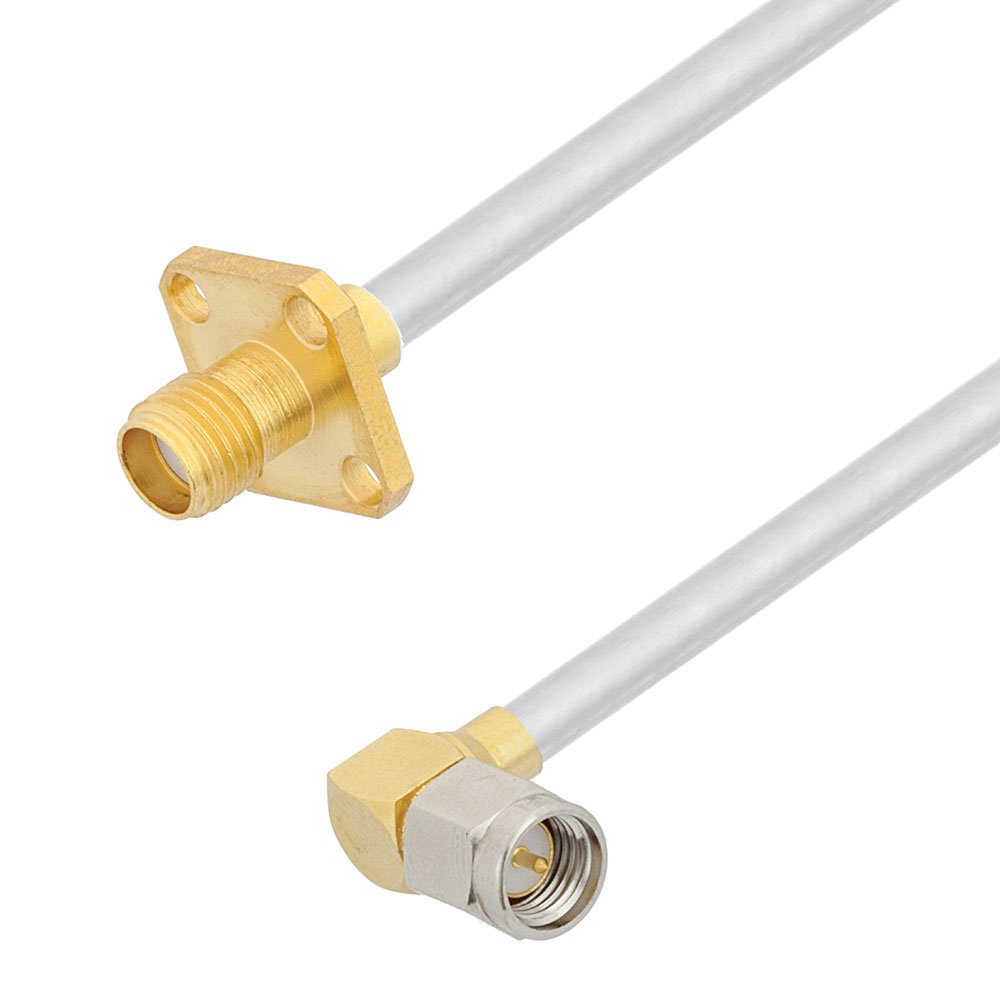

FMCA2866-36
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAJACK 36
FMCA2866-36
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAJACK 36
Description
General part information
FMCA2866-36
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2866-36 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Feature | Flange |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | SMA |
