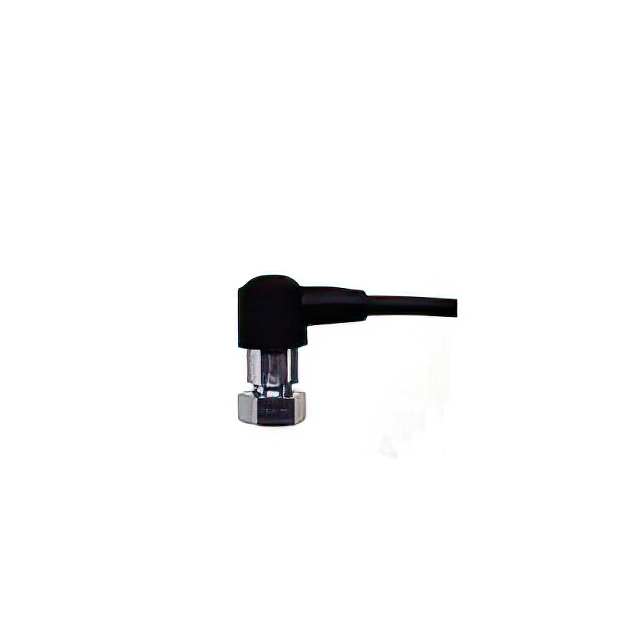

CMCP1100SR-05-00-00
ActiveSTI Vibration Monitoring
REVOLUTION ACCEL, SIDE, 5M
CMCP1100SR-05-00-00
ActiveSTI Vibration Monitoring
REVOLUTION ACCEL, SIDE, 5M
Description
General part information
CMCP1100SR-05-00-00
Accelerometer X Axis ±50g 0.32Hz ~ 10kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | CMCP1100SR-05-00-00 |
|---|---|
| Acceleration Range (Maximum) | 50 g |
| Acceleration Range (Minimum) | -50 g |
| Axis | X |
| Bandwidth (Max) | 10 kHz |
| Bandwidth (Min) | 0.32 Hz |
| Features | Side Exit, 5m Integral Cable |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -54 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 100 mV/g |
| Type | Analog |
| Voltage - Supply (Maximum) | 28 V |
| Voltage - Supply (Minimum) | 18 VAC |
