Description
General part information
1071260

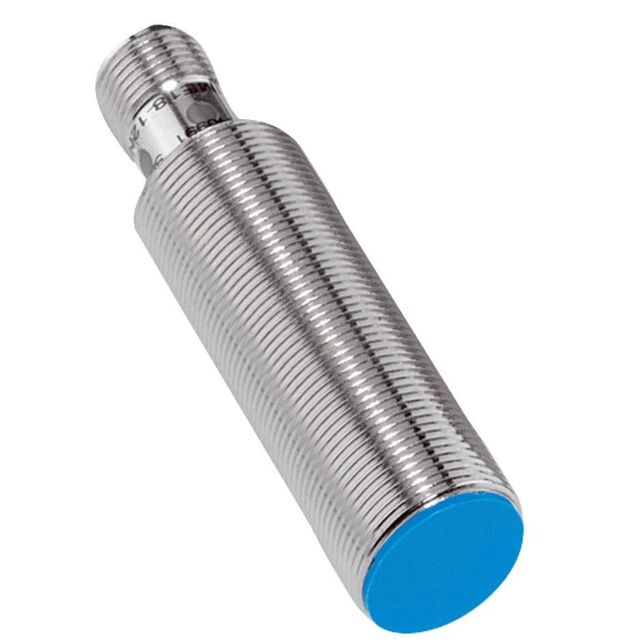

Inductive Proximity Sensor 0.472" (12mm) IP67 Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | 1071260 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.472 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
