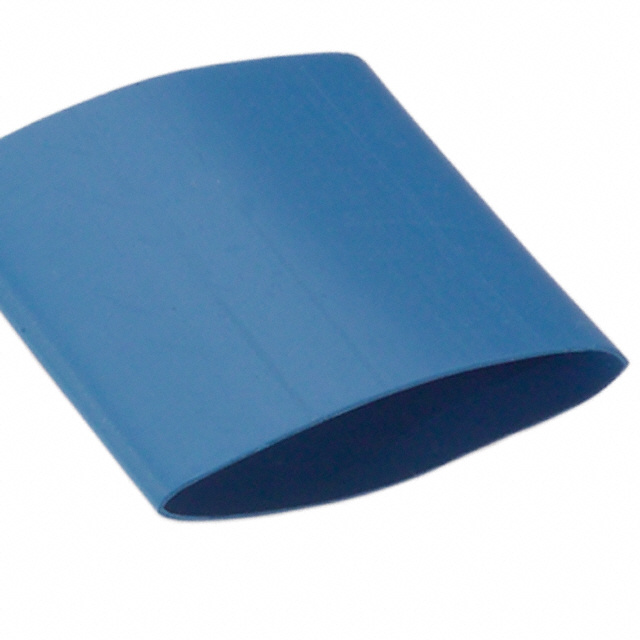

FP-301 2" BU 100'

Active

3M (TC)

HEATSHRINK FP301 2" 50' BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

FP-301 2" BU 100'

Active

3M (TC)

HEATSHRINK FP301 2" 50' BLUE

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP-301 2" BU 100'

Color	Blue
Features	Flame Retardant, Solvent Resistant
Inner Diameter - Recovered [diameter]	25.4 mm
Inner Diameter - Recovered [diameter]	1 in
Inner Diameter - Supplied [diameter]	50.8 mm
Inner Diameter - Supplied [diameter]	2 in
Length	25.4 mm, 15.2 m, 152.4 mm, 76.2 mm, 7.6 m, 19.05 mm
Length	0.083 ft, 50 ft, 0.25 ft, 25 ft, 0.062 '
Length	1 in, 6 ", 3 ", 0.75 "
Length	0.5 '
Length [x]	4 "
Length [x]	0.333 ft
Length [x]	101.6 mm
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.045 in
Recovered Wall Thickness	1.14 mm
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

FP-301VW Series

...

Part	Shrink Temperature	Type	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Operating Temperature [Max]	Operating Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Color	Length [x]	Length [x]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Shelf Life Start	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length	Length	Length	Length	Length	Diameter [diameter]	Values [custom]	Values [Min]	Values [Max]	Values [custom]	Inner Diameter - Recovered	Inner Diameter - Recovered
3M (TC) FP301-1/2-48"-GREEN-HDR-12 PCS	100 °C	Tubing Flexible	Polyolefin (PO)	0.25 in	6.35 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Header Label Solvent Resistant	12.7 mm	0.5 in	120 Months	Green	1.22 m	4 ft	0.025 "	0.64 mm	Date of Manufacture
3M (TC) FP301-3/32-48"-CLEAR-HDR-25 PCS	100 °C	Tubing Flexible	Polyolefin (PO)	0.046 in	1.17 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Header Label Solvent Resistant	0.093 in		120 Months	Clear	1.22 m	4 ft			Date of Manufacture	2.36 mm	0.02 in	0.51 mm
3M (TC) FP-301 2" WT 100'	100 °C	Tubing Flexible	Polyolefin (PO)	1 in	25.4 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Solvent Resistant	50.8 mm	2 in	120 Months	White	30.5 m 101.6 mm	0.333 ft 100 ft			Date of Manufacture		0.045 in	1.14 mm	4 "	0.125 ' 0.167 ' 5 ' 25 ft 50 ft	1.52 m 7.6 m 15.2 m 38.1 mm 50.8 mm 152.4 mm	1.5 " 2 " 6 "	0.5 '	Enter Number of Feet in Order Quantity
3M (TC) FP301-3-50'-RED-SPOOL	100 °C	Tubing Flexible	Polyolefin (PO)	1.5 in	38.1 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Solvent Resistant	76.2 mm	3 in	120 Months	Red					Date of Manufacture		0.05 in	1.27 mm		50 ft	15.2 m
3M (TC) FP-301-3/32-BLACK-6"-PACK						2 to 1									Black															0.09375 in	152.4 mm	10 pc	36 pc	6 in
3M (TC) FP-301 2" BU 100'	100 °C	Tubing Flexible	Polyolefin (PO)	1 in	25.4 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Solvent Resistant	50.8 mm	2 in	120 Months	Blue	101.6 mm	0.333 ft			Date of Manufacture		0.045 in	1.14 mm	4 "	0.062 ' 0.083 ft 0.25 ft 25 ft 50 ft	7.6 m 15.2 m 19.05 mm 25.4 mm 76.2 mm 152.4 mm	0.75 " 1 in 3 " 6 "	0.5 '
3M (TC) FP301-2-50'-CLEAR-SPOOL	100 °C	Tubing Flexible	Polyolefin (PO)	1 in	25.4 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Solvent Resistant	50.8 mm	2 in	120 Months	Clear					Date of Manufacture		0.045 in	1.14 mm		50 ft	15.2 m
3M (TC) FP-301-VW-1/16-BLACK	100 °C	Tubing Flexible	Polyolefin (PO)	0.031 in	0.79 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant	1.6 mm	0.063 in	120 Months	Black					Date of Manufacture		0.017 in	0.43 mm			152.4 mm	6 "	0.5 '
3M (TC) FP-301-1.5-YELLOW-4'-BULK	100 °C	Tubing Flexible	Polyolefin (PO)	0.75 "	19.05 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Solvent Resistant	38.1 mm	1.5 in	120 Months	Yellow	1.22 m	4 ft			Date of Manufacture		0.04 in	1.02 mm
3M (TC) FP301-3/16-100'-GREEN-SPOOL	100 °C	Tubing Flexible	Polyolefin (PO)			2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C		4.75 mm	0.187 in	120 Months	Green					Date of Manufacture		0.02 in	0.51 mm		10 ft 25 ft 50 ft	3.05 m 7.6 m 15.2 m									2.36 mm	0.093 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.09
		1	$ 157.66
		5	$ 152.03
		5	$ 84.46
		10	$ 78.83
		10	$ 149.78
		25	$ 146.40
		25	$ 74.89
		50	$ 143.02
		50	$ 0.87
		50	$ 73.20
		50	$ 1.30
		50	$ 0.23
		50	$ 0.66
		50	$ 0.18
		100	$ 71.51
		100	$ 0.62
		100	$ 1.22
		100	$ 0.22
		100	$ 0.82
		100	$ 0.17
		250	$ 0.15
		250	$ 0.54
		250	$ 1.07
		250	$ 0.19
		250	$ 0.72
		500	$ 0.18
		500	$ 0.14
		500	$ 0.99
		500	$ 0.50
		500	$ 0.67
		1250	$ 0.17
		1250	$ 0.49
		1250	$ 0.13
		1250	$ 0.65
		1250	$ 0.97

Description

General part information

FP-301VW Series

Heat Shrink Tubing, Flexible 2.000" (50.80mm) 2 to 1 Blue 50.0' (15.2m)

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet
