PE3C8874/BK-120
ActivePasternack

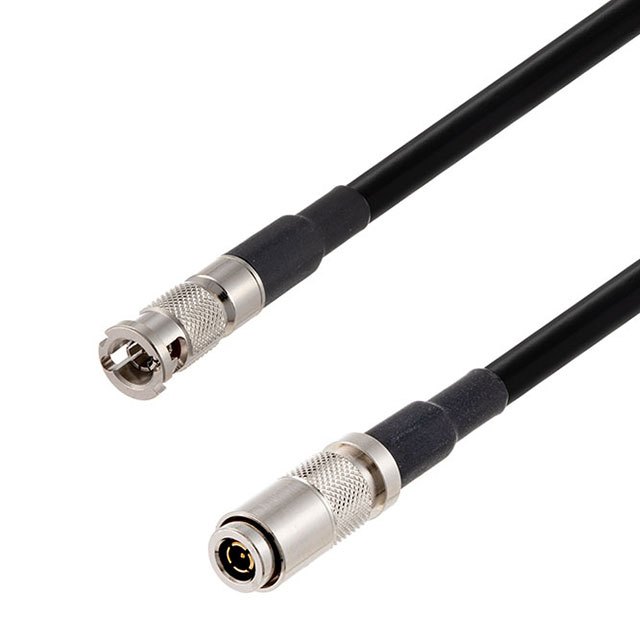

CBL ASSY 1.0/2.3-HDBNC PL-PL 10'
PE3C8874/BK-120
ActivePasternack
CBL ASSY 1.0/2.3-HDBNC PL-PL 10'
Description
General part information
PE3C8874/BK-120
Cable Assembly Coaxial 1.0/2.3 to HD-BNC Belden 1855A 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3C8874/BK-120 |
|---|---|
| 1st Connector | 1.0/2.3 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 1 mm |
| 1st Connector Dimension (2) | 2.3 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 1 mm, 1 |
| 1st Connector Size (Dimension 2) | 2.3 mm, 2.3 |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 1855A |
| Color | Black |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 120 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | 1.0/2.3 to HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
