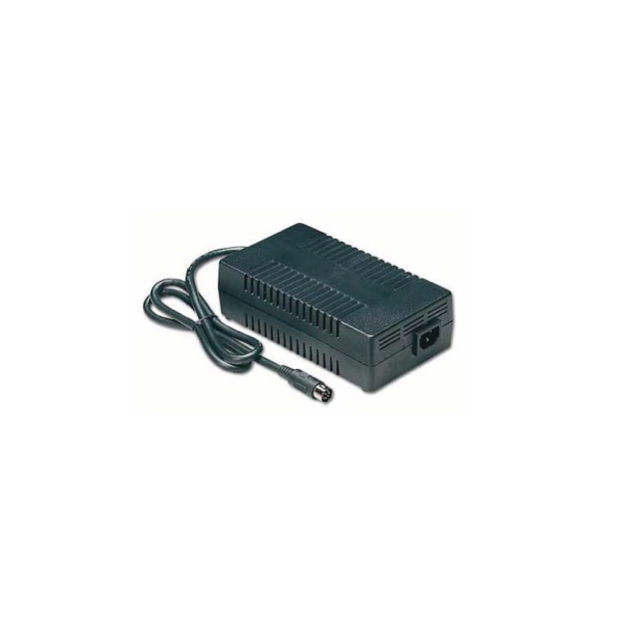

MTE140-54SX-F-W6

Active

ETA-USA

AC/DC DESKTOP ADAPTER 54V 140W

Search across all available documentation for this part.

Active

ETA-USA

AC/DC DESKTOP ADAPTER 54V 140W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MTE140-54SX-F-W6	MTE140 Series

Applications	Medical	Medical
Approval Agency	CE, FCC, TUV, UL, cUL, CB	CE, FCC, TUV, UL, cUL, CB
Cord Length	1 m	1 m
Cord Length	39.4 "	39.4 "
Current - Output (Max) [Max]	2.6 A	2.6 - 7.37 A
Efficiency	Level VI	Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Output Connector	4 Pin	4 Pin
Output Connector	Power DIN	Power DIN
Power (Watts)	140 W	140 W
Region Utilized	International	International
Size / Dimension [x]	170 mm	170 mm
Size / Dimension [x]	6.69 "	6.69 "
Size / Dimension [y]	64.8 mm	64.8 mm
Size / Dimension [y]	2.55 "	2.55 "
Size / Dimension [z]	38.5 mm	38.5 mm
Size / Dimension [z]	1.52 in	1.52 in
Standard Number	60601-1	60601-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	54 V	19 - 54 V

AC/DC DESKTOP ADAPTER 54V 140W

Part	Current - Output (Max) [Max]	Approval Agency	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Region Utilized	Voltage - Output	No Load Power Consumption [Max]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Form	Cord Length	Cord Length	Standard Number	Output Connector	Output Connector	Input Connector	Applications
ETA-USA MTE140-54SX-F-W6	2.6 A	CB, CE, cUL, FCC, TUV, UL	Level VI	90 VAC	264 VAC	38.5 mm	170 mm	64.8 mm	6.69 "	1.52 in	2.55 "	International	54 V	150 mW	Cord	-20 C	60 °C	140 W	Desktop (Class I)	1 m	39.4 "	60601-1	4 Pin	Power DIN	IEC 320-C14	Medical
ETA-USA MTE140-19SX-F-W6	7.37 A	CB, CE, cUL, FCC, TUV, UL	Level VI	90 VAC	264 VAC	38.5 mm	170 mm	64.8 mm	6.69 "	1.52 in	2.55 "	International	19 V	150 mW	Cord	-20 C	60 °C	140 W	Desktop (Class I)	1 m	39.4 "	60601-1	4 Pin	Power DIN	IEC 320-C14	Medical
ETA-USA MTE140-36SX-F-W6	3.89 A	CB, CE, cUL, FCC, TUV, UL	Level VI	90 VAC	264 VAC	38.5 mm	170 mm	64.8 mm	6.69 "	1.52 in	2.55 "	International	36 V	150 mW	Cord	-20 C	60 °C	140 W	Desktop (Class I)	1 m	39.4 "	60601-1	4 Pin	Power DIN	IEC 320-C14	Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 118.00

General part information

54V 140 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
