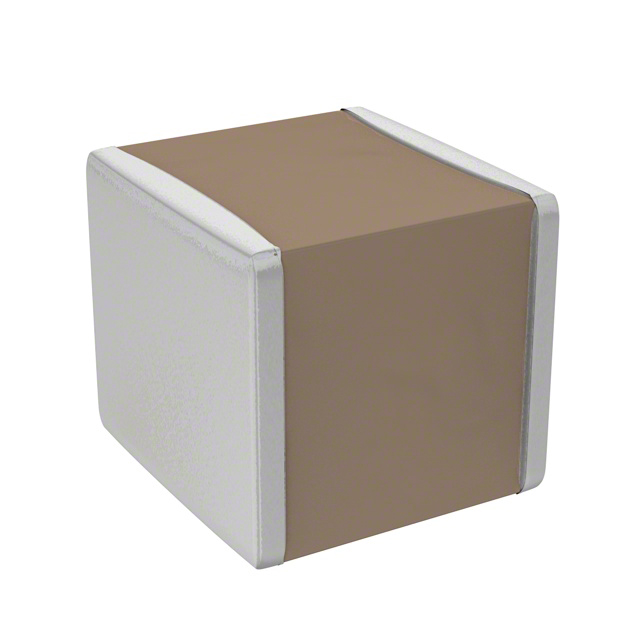

VJ1111D3R9CXRAJ

Active

Vishay Vitramon

CAP CER 3.9PF 1.5KV C0G/NP0 1111

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VJ1111D3R9CXRAJ

Active

Vishay Vitramon

CAP CER 3.9PF 1.5KV C0G/NP0 1111

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.26
		10	$ 0.94
		50	$ 0.86
		100	$ 0.71
		500	$ 0.58
	Digi-Reel®	1	$ 1.26
		10	$ 0.94
		50	$ 0.86
		100	$ 0.71
		500	$ 0.58
	Tape & Reel (TR)	1000	$ 0.58

Description

General part information

VJ1111 Series

3.9 pF ±0.25pF 1500V (1.5kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VJ1111D3R9CXRAJ	VJ1111 Series

Applications	High Frequency, Microwave, RF	High Frequency, Microwave, RF
Capacitance	3.9 pF	0.001 - 910 pF
Capacitance Range	-	1 - 100 pF
Capacitance Range	-	8.2 - 1000 pF
Features	Low Loss, High Q	Low Loss, High Q
Kit Type	-	Ceramic
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1111 (2828 Metric)	1111 (2828 Metric)
Packages Included	-	2828 Metric
Packages Included	-	1111
Quantity	-	225 - 240 Pieces
Size / Dimension [x]	2.98 mm	2.98 mm
Size / Dimension [x]	0.117 "	0.117 "
Size / Dimension [y]	2.79 mm	2.79 mm
Size / Dimension [y]	0.11 in	0.11 in
Temperature Coefficient	NP0, C0G	NP0, C0G
Thickness (Max) [Max]	0.102 "	0.102 "
Thickness (Max) [Max]	2.59 mm	2.59 mm
Tolerance	0.25 pF	0.05 - 10 %
Tolerance	-	±5%, ±10%
Tolerance	-	0.25 pF
Voltage - Rated	1.5 kV	1 - 1.5 kV
Voltage - Rated	1500 V	300 - 1500 V
Voltage - Rated	-	1500 V
Voltage - Rated	-	300 V

VJ1111 Series

CAP CER 68PF 1.5KV C0G/NP0 1111

Part	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Features	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Applications
Vishay Vitramon VJ1111D680JXRAT	68 pF	-55 °C	125 °C	5 %	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D1R5BXRAJ	1.5 pF	-55 °C	125 °C	0.1 pF	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D151KXGAT	150 pF	-55 °C	125 °C	10 %	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1 kV	1000 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D270GXRAJ	27 pF	-55 °C	125 °C	2 %	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D0R3VXRAJ	0.3 pF	-55 °C	125 °C	0.05 pF	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D9R1BXRAJ	9.1 pF	-55 °C	125 °C	0.1 pF	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D1R3BXRAJ	1.3 pF	-55 °C	125 °C	0.1 pF	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D1R8BXRAJ	1.8 pF	-55 °C	125 °C	0.1 pF	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D0R9VXRAJ	0.9 pF	-55 °C	125 °C	0.05 pF	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
Vishay Vitramon VJ1111D750GXRAJ	75 pF	-55 °C	125 °C	2 %	High Q, Low Loss	1111 (2828 Metric)	0.102 "	2.59 mm	2.98 mm	2.79 mm	0.117 "	0.11 in	MLCC, Surface Mount	C0G, NP0	1.5 kV	1500 V	High Frequency, Microwave, RF
