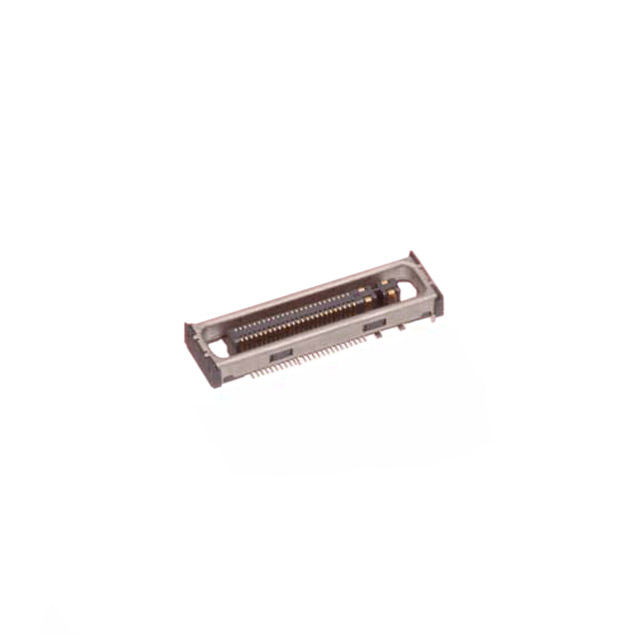

Specification	EX80-54S

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.142 in
Mounting Type	Surface Mount
Number of Positions	54
Number of Rows	2
Pitch	0.024 in

EX80 Series

Part	Pitch	Mounting Type	Contact Finish	Height Above Board	Number of Rows	Features	Connector Type	Number of Positions	Contact Finish Thickness
Hirose Electric Co Ltd EX80-100P1(30)	0.024 in	Surface Mount	Gold	0.594 in	2	Board Guide	Outer Shroud Contacts Plug	100
Hirose Electric Co Ltd EX80-54P(30)	0.024 in	Surface Mount	Gold	0.594 in	2	Board Guide	Outer Shroud Contacts Plug	54
Hirose Electric Co Ltd EX80-54P(01)	0.024 in	Surface Mount	Gold	0.594 in	2	Board Guide	Outer Shroud Contacts Plug	54
Hirose Electric Co Ltd EX80-54(50)S-SH(72)	0.024 in	Surface Mount		0.205 in	2	Board Guide Shutter	Center Strip Contacts Receptacle	54
Hirose Electric Co Ltd EX80-54(50)S-SH(32)
Hirose Electric Co Ltd EX80-100P1(70)	0.024 in	Surface Mount	Gold	0.594 in	2	Board Guide	Outer Shroud Contacts Plug	100	20 µin
Hirose Electric Co Ltd EX80-54P(70)	0.024 in	Surface Mount	Gold	0.594 in	2	Board Guide	Outer Shroud Contacts Plug	54	20 µin
Hirose Electric Co Ltd EX80-100S(70)	0.024 in	Surface Mount	Gold	0.142 in	2	Board Guide	Center Strip Contacts Receptacle	100	8 µin
Hirose Electric Co Ltd EX80-54S-SH(36)
Hirose Electric Co Ltd EX80-54P(31)
