25010/15 RD199
ActiveALPHA WIRE

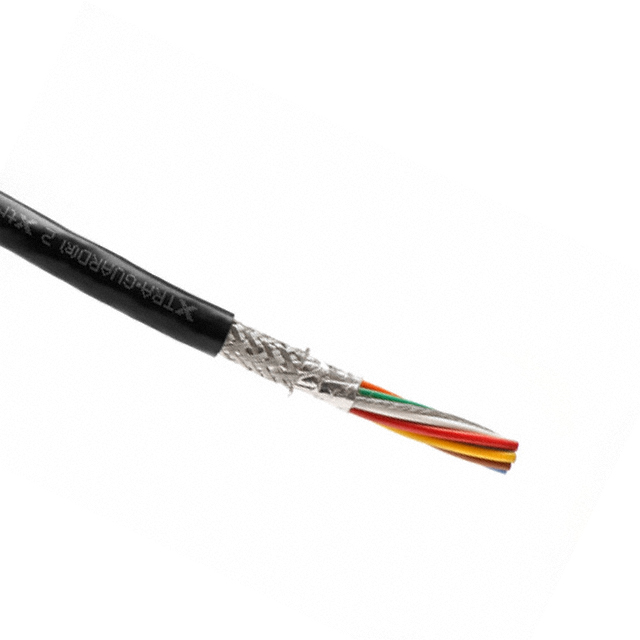

CABLE 15COND 22AWG RED 1000'
Deep-Dive with AI
Search across all available documentation for this part.
25010/15 RD199
ActiveALPHA WIRE
CABLE 15COND 22AWG RED 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25010/15 RD199 | 25010/15 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 7 | 7 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Features | Rip Cord, Biological Compatibility | Rip Cord, Biological Compatibility |
| Jacket (Insulation) Diameter [diameter] | 0.299 in | 0.299 in |
| Jacket (Insulation) Diameter [diameter] | 7.6 mm | 7.6 mm |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Red | Black, Red |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Number of Conductors | 15 | 15 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Voltage | 300 V | 300 V |
| Wire Gauge | 22 AWG | 22 AWG |
25010/15 Series
CABLE 15COND 22AWG BLACK 1000'
| Part | Voltage | Ratings | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Jacket Color | Conductor Insulation | Wire Gauge | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Length | Length | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25010/15 BK199 | 300 V | ISO 10993, UL Style 20668 | Multi-Conductor | -30 ░C | 90 °C | 15 | Black | Poly-Vinyl Chloride (PVC) | 22 AWG | Copper, Tinned | 7 | 30 AWG | 0.299 in | 7.6 mm | Biological Compatibility, Rip Cord | 1000 ft | 304.8 m | Polyurethane (PU) |
ALPHA WIRE 25010/15 RD199 | 300 V | ISO 10993, UL Style 20668 | Multi-Conductor | -30 ░C | 90 °C | 15 | Red | Poly-Vinyl Chloride (PVC) | 22 AWG | Copper, Tinned | 7 | 30 AWG | 0.299 in | 7.6 mm | Biological Compatibility, Rip Cord | Polyurethane (PU) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 9.28 | |
Description
General part information
25010/15 Series
15 Conductor Multi-Conductor Cable Red 22 AWG
