PFG.0B.305.CYZZ

Active

LEMO

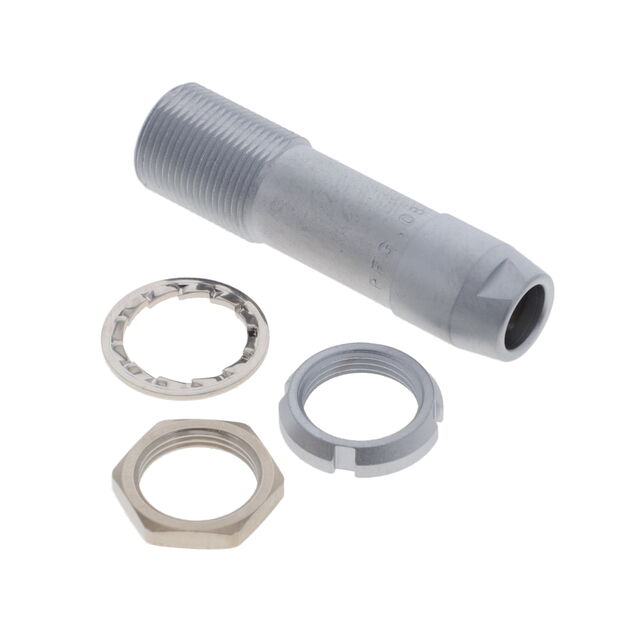

CONN RCP HSG FMAL 5P INLN PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PFG.0B.305.CYZZ

Active

LEMO

CONN RCP HSG FMAL 5P INLN PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents
