SCEP134H-2R7
ActiveSignal Transformer
FIXED IND 2.7UH 12A 10.8 MOHM
SCEP134H-2R7
ActiveSignal Transformer
FIXED IND 2.7UH 12A 10.8 MOHM
Description
General part information

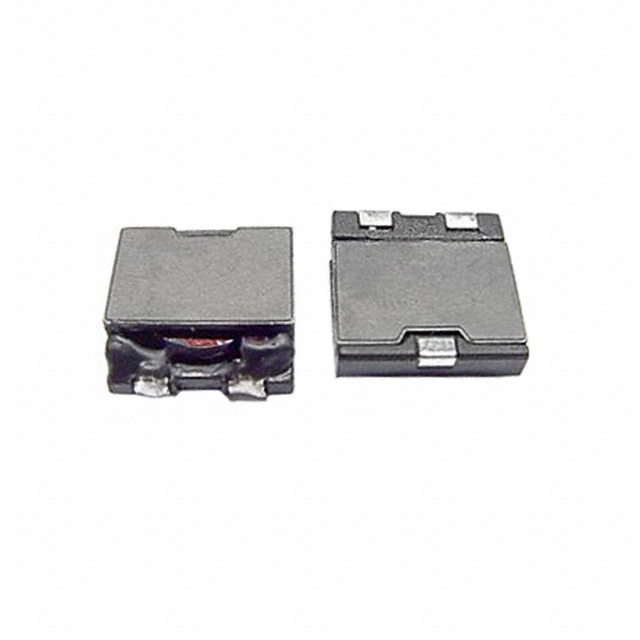

SCEP134H-2R7
2.7 µH Shielded Inductor 12 A 10.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCEP134H-2R7 |
|---|---|
| Current - Saturation (Isat) | 14.7 A |
| Current Rating | 12 A |
| DC Resistance (DCR) (Max) | 10.8 mOhm |
| Height - Seated (Max) | 0.193 in |
| Inductance | 2.7 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.547 in |
| Size / Dimension Width | 0.547 in |
| Tolerance | 20 % |
