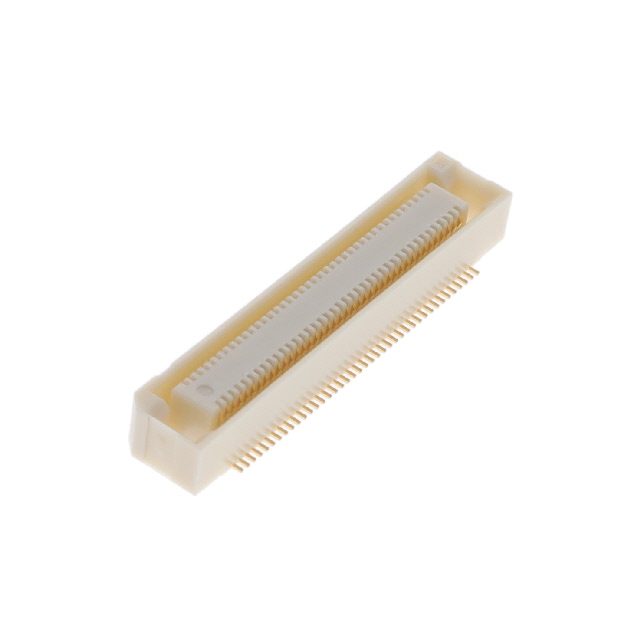

Specification	FX8C-80S-SV(92)

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.156 in
Mated Stacking Height Options	6mm, 7mm, 9mm, 5mm, 11mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch	0.024 in

FX8C Series

...

Part	Contact Finish	Features	Mounting Type	Mated Stacking Height Options	Height Above Board	Pitch	Number of Rows	Connector Type	Number of Positions
Hirose Electric Co Ltd FX8C-140P-SV(92)	Gold	Board Guide	Surface Mount	10mm 5mm	0.175 in	0.024 in	2	Header Outer Shroud Contacts	140
Hirose Electric Co Ltd FX8C-100P-SV2(71)	Gold	Board Guide	Surface Mount	12mm 7mm	0.254 in	0.024 in	2	Header Outer Shroud Contacts	100
Hirose Electric Co Ltd FX8C-80P-SV(93)	Gold	Board Guide	Surface Mount	10mm 5mm	0.175 in	0.024 in	2	Header Outer Shroud Contacts	80
Hirose Electric Co Ltd FX8C-140P-SV1(21)	Gold	Board Guide	Surface Mount	11mm 6mm	0.214 in	0.024 in	2	Header Outer Shroud Contacts	140
Hirose Electric Co Ltd FX8C-120/120S11-SVJ(71)	Gold	Board Guide Bridged Receptacles (2)	Surface Mount	11mm 5mm 6mm 7mm 9mm	0.156 in	0.024 in	4	Center Strip Contacts Receptacle	240
Hirose Electric Co Ltd FX8C-100P-SV(93)	Gold	Board Guide	Surface Mount	10mm 5mm	0.175 in	0.024 in	2	Header Outer Shroud Contacts	100
Hirose Electric Co Ltd FX8C-100S-SV(21)	Gold	Board Guide	Surface Mount	11mm 5mm 6mm 7mm 9mm	0.156 in	0.024 in	2	Center Strip Contacts Receptacle	100
Hirose Electric Co Ltd FX8C-80/80S11-SV5J(71)	Gold	Board Guide Bridged Receptacles (2)	Surface Mount	10mm 11mm 12mm 14mm 16mm	0.352 in	0.024 in	4	Center Strip Contacts Receptacle	160
Hirose Electric Co Ltd FX8C-80P-SV(21)	Gold	Board Guide	Surface Mount	10mm 5mm	0.175 in	0.024 in	2	Header Outer Shroud Contacts	80
Hirose Electric Co Ltd FX8C-120P-SV1(92)	Gold	Board Guide	Surface Mount	11mm 6mm	0.214 in	0.024 in	2	Header Outer Shroud Contacts	120
