M1575HCT-22-P-E1/108-00033-01
ActiveMaxtena Inc

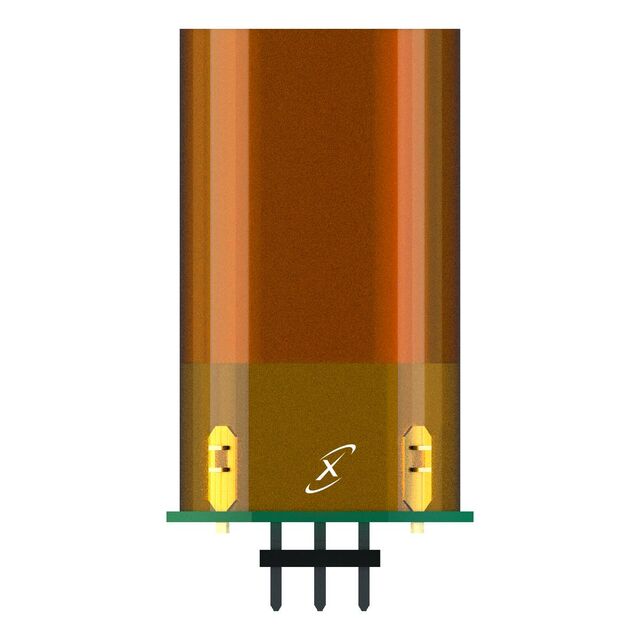

HELICAL PASSIVE GPS ANTENNA
M1575HCT-22-P-E1/108-00033-01
ActiveMaxtena Inc
HELICAL PASSIVE GPS ANTENNA
Description
General part information
M1575HCT-22-P-E1/108-00033-01
RF ANTENNA GPS Module U.FL
Technical Specifications
Parameters and characteristics for this part
| Specification | M1575HCT-22-P-E1/108-00033-01 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Gain | -0.5 dBic |
| Height (Max) | 0.957 in |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | U.FL |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
