2966252
ActivePhoenix Contact

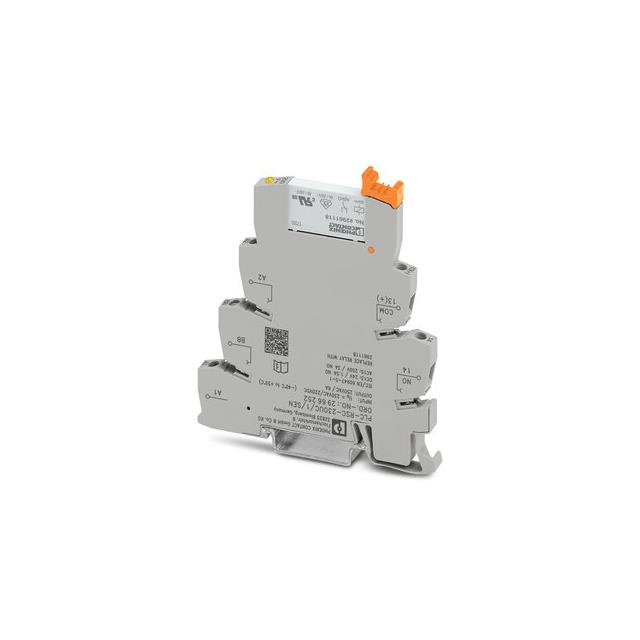

RELAY GEN PURPOSE SPST 230V
Deep-Dive with AI
Search across all available documentation for this part.
2966252
ActivePhoenix Contact
RELAY GEN PURPOSE SPST 230V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2966252 | 29662 Series |
|---|---|---|
| Approval Agency | UKCA, CE | cULus, DNV, UL, EAC, UKCA, CE |
| Coil Current | - | 3.2 - 11 mA |
| Coil Resistance | - | 2.18 - 71.88 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 24 - 230 VAC |
| Contact Form | SPST-NO (1 Form A) | SPDT (1 Form C), SPST-NO (1 Form A), SPST-NC (1 Form B) |
| Contact Material | - | Silver (Ag), Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | - | 6 - 50 mA |
| Features | Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | - | 5 - 7 ms |
| Operating Temperature | - | -25 °C |
| Operating Temperature | - | 55 - 60 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | - | 8 - 15 ms |
| Switching Voltage | - | 30 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
29662 Series
RELAY GEN PURPOSE SPDT 50MA 24V
| Part | Release Time | Termination Style | Mounting Type | Contact Rating (Current) | Relay Type | Contact Form | Operate Time | Features | Coil Voltage | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Coil Type | Switching Voltage | Coil Resistance | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2966278 | 15 ms | Screw Terminal | DIN Rail | 50 mA | General Purpose | SPDT (1 Form C) | 6 ms | Lighted Indicator, Socket Included | 24 VAC | Gold (Au), Silver (Ag) | -25 °C | 60 °C | cULus, DNV, EAC, UL | Non Latching | 30 VAC, 36 VDC | 2.18 kOhms | 11 mA |
Phoenix Contact 2966294 | 15 ms | Screw Terminal | DIN Rail | 50 mA | General Purpose | SPDT (1 Form C) | 7 ms | Lighted Indicator, Socket Included | 230 VAC | Gold (Au), Silver (Ag) | -25 °C | 55 °C | cULus, DNV, EAC, UL | Non Latching | 30 VAC, 36 VDC | 71.88 kOhms | 3.2 mA |
Phoenix Contact 2966210 | 8 ms | Screw Terminal | DIN Rail | 6 A | General Purpose | SPST-NO (1 Form A) | 5 ms | Lighted Indicator, Socket Included | 24 VDC | Silver Tin Oxide (AgSnO) | -25 °C | 60 °C | CE, UKCA | Non Latching | 250 VAC, 250 VDC | 2.667 kOhms | 9 mA |
Phoenix Contact 2966265 | 8 ms | Screw Terminal | DIN Rail | 50 mA | General Purpose | SPDT (1 Form C) | 5 ms | Lighted Indicator, Socket Included | 24 VDC | Gold (Au), Silver (Ag) | -25 °C | 60 °C | cULus, DNV, EAC, UL | Non Latching | 30 VAC, 36 VDC | 2.67 kOhms | 9 mA |
Phoenix Contact 2966223 | 8 ms | Screw Terminal | DIN Rail | 6 A | General Purpose | SPST-NO (1 Form A) | 5 ms | Lighted Indicator, Socket Included | 24 VDC | Silver Tin Oxide (AgSnO) | -25 °C | 60 °C | CE, UKCA | Non Latching | 250 VAC, 250 VDC | 2.667 kOhms | 9 mA |
Phoenix Contact 2966207 | 15 ms | Screw Terminal | DIN Rail | 6 A | General Purpose | SPDT (1 Form C) | 7 ms | Lighted Indicator, Socket Included | 230 VAC | Silver Tin Oxide (AgSnO) | -25 °C | 55 °C | CE, UKCA | Non Latching | 250 VAC, 250 VDC | 71.875 kOhms | 3.2 mA |
Phoenix Contact 2966249 | 15 ms | Screw Terminal | DIN Rail | 6 A | General Purpose | SPST-NC (1 Form B) | 6 ms | Lighted Indicator, Socket Included | 120 VAC, 120 VDC | Silver Tin Oxide (AgSnO) | -25 °C | 55 °C | CE, UKCA | Non Latching | 250 VAC, 250 VDC | 34.29 kOhms | 3.5 mA |
Phoenix Contact 2966252 | Screw Terminal | DIN Rail | General Purpose | SPST-NO (1 Form A) | Socket Included | 230 VAC | CE, UKCA | Non Latching |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.75 | |
Description
General part information
29662 Series
General Purpose Relay SPST-NO (1 Form A) 230VAC/DC Coil DIN Rail
